IONIC ORDER (EMPIRE)
ARCHITECTURAL WOOD COLUMNS
(FLUTED, TAPERED)
INCLUDES COMPOSITE ORNATE NECKING
DESIGN 139
– CUSTOM COLUMN SIZING –
MATERIAL & MANUFACTURING PROCESS
Western Red Cedar, Clear Heart Redwood, pine, poplar, & mahogany are just
a few of the popular wood species utilized for our Architectural Wood Columns.
If you desire another wood species, please inform us, and it will be our pleasure to
accomodate. To ensure that our wood columns are of the highest quality, we
process each order with individualized care and attention. First, the column's
height and diameter are entered into our computer system which has been
programmed to calculate the exact proportions necessary to produce your
beautiful exterior wood columns and architectural interior wood columns.
COLUMN SHAFT

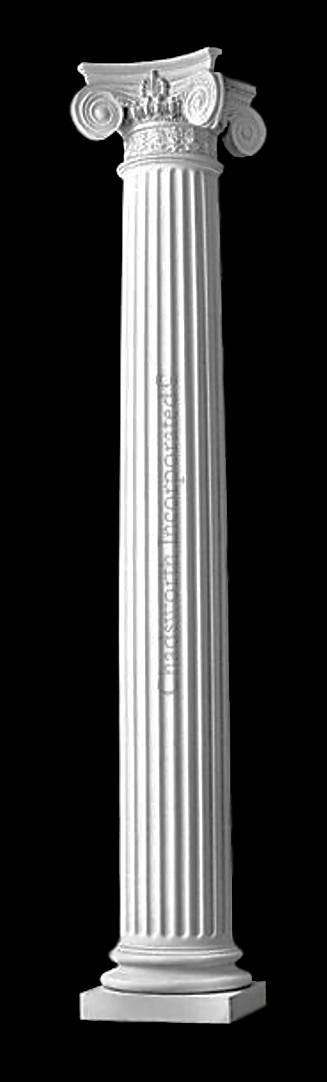

Fluted, Tapered column shaft. The Empire with Necking wood column shaft
is architecturally correct according to Vignola's classical column specifications.
Select, also, from our distinct column design shapes to match your interior or
exterior architectural specifications. The length and placement of the fluting
can be altered to achieve many column design styles. Fluting may be either at the
top or bottom one-third, one-half, or two-thirds of the column shaft. We use
Western Red Cedar, Clear Heart Redwood, pine, poplar, mahogany, teak or any
other wood species desired. Wood materials are available in both solid board and
finger-joint form. Each column is made to your exact specifications. We recommend
using either finger-joint redwood or cedar for interior columns that will be stained
or left natural with a clear protective finish to display the grain of the wood.
CAPITAL, BASE MOLDING & PLINTH
CAPITAL: Design 139 is characterized by an Empire capital with composite
ornate necking. Standard materials are polyurethane for the smaller column
sizes and fiberglass for the larger column sizes. Load-bearing qualities. Wood
capitals are available for all sizes at an upcharge. We are able to replicate for
historic restoration if you have as much as a quarter of the existing capital including
corner and any side design. Please contact a Chadsworth Sales Consultant for
additional capital materials and information. BASE MOLDING: Design 139 has
an Ionic (Attic) Base. Base materials follow the same parameters as the capitals.
PLINTH: We offer a variety of Plinth materials, specific to your column
sizes and interior or exterior applications.
|
LOWER/BOTTOM DIAMETER: Custom
UPPER/TOP DIAMETER: Custom
OVERALL HEIGHT: Custom
STAVE THICKNESS: 1-9/16"
INTERIOR ROUND CLEARANCE: Dependent on size of column
INTERIOR SQUARE CLEARANCE: Dependent on size of column
ACCEPTABLE TOLERANCE: 1/8"
SHAFT WEIGHT: Dependent on size of column
LOAD-BEARING CAPACITY: Dependent on size of column
|
|
FLEXIBILITY:
• Able to be split & tabbed for reassembly
• Client determines exact overall height
• Column shaft has proper 1/3 - 2/3 taper (entasis).
• Other wood species available upon request (may result in higher cost).
|
|
SHIPPING:
• Boxing, collaring & crating available
|
|
RESTOCKING:
• None. All Architectural wood columns are made to order, and therefore cannot be returned.
|
|
AVAILABLE PLAN SHAPES
|
|
|
|
ADDITIONAL INFORMATION & DOWNLOADS
|
|
|
|
|
|
PLEASE CONTACT A CHADSWORTH SALES CONSULTANT FOR ADDITIONAL INFORMATION
|
