HOME > COLUMNS > Design #241 Ionic Order (Greek) PolyStone® Column Fluted, Tapered Shaft Greek Angular Ionic Capital & Ionic (Attic) Base Moulding/Plinth

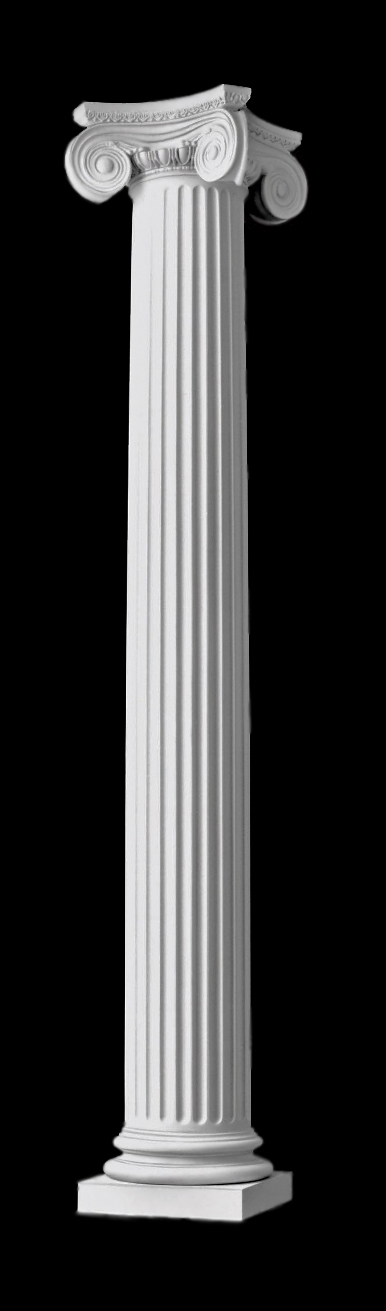

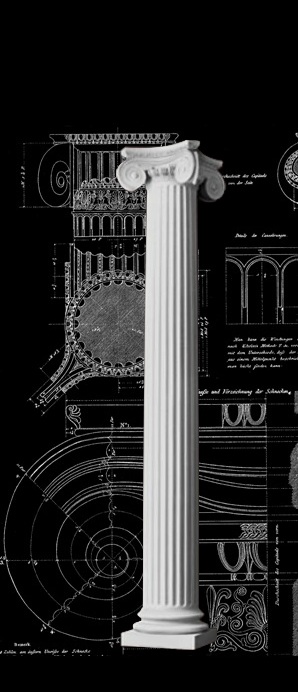

Design #241 Ionic Order (Greek) PolyStone® Column Fluted, Tapered Shaft Greek Angular Ionic Capital & Ionic (Attic) Base Moulding/Plinth
|
Item Number: PSX-PL-TP-A-GAC/ATC-PY-2
To complete your order, call for a freight estimate.
IONIC ORDER (GREEK)
POLYSTONE® COMPOSITE COLUMNS
(FLUTED, ROUND, TAPERED)
GREEK ANGULAR CAPITAL DESIGN
IONIC (ATTIC) BASE MOLDING & PLINTH
DESIGN 241
MATERIAL & MANUFACTURING PROCESS
Composed of polyester resin, fiberglass & marble dust trix-spun-cast in existing
molds. Custom column molds can be created for unique column specifications.
COLUMN SHAFT
PolyStone® column shaft made of polyester resin, fiberglass and marble dust.
The column shaft is fluted and tapered (bottom third of the shaft is
straight, with the remaining 2/3 tapering to the neck). Shaft can be cut down
to your desired overall height (cut from the bottom of the shaft only).
Classic astragal (bead) molded onto shaft.
CAPITAL, BASE MOLDING & PLINTH
Greek Angular Ionic capital is made of paint-grade, load-bearing polyester resin.
Ionic (Attic) base/plinth set made of lightweight polyurethane. Heavier
cast marble base / plinth set available for an upcharge. Please see spec
sheet for complete column dimensions.
|
|
|
FLEXIBILITY:
• Tabbing of column
• Cutting to overall length available
• Interchangeable bases & plinths
|
|
SHIPPING:
• Quick Ship available on some sizes
• Boxing, collaring & crating available
|
|
RESTOCKING:
• Yes, excluding custom and altered products
• Fee will be applied
|
| FLUTING:
• Molded flutes available for sizes 6" - 18"
• 6" size: (16) flutes - 8" - 18" sizes: (24) flutes
• Flutes end 10-3/4" from Attic base for trimming to exact height
• Flute width varies depending on diameter & taper of column shaft
• Automated flutes are available for adjusted flute lengths upon request
|
|
AVAILABLE PLAN SHAPES
|
|
|
|
ADDITIONAL INFORMATION & DOWNLOADS
|
|
|
|
|
|
PLEASE CONTACT A CHADSWORTH SALES CONSULTANT FOR ADDITIONAL INFORMATION
|
|
|
PRICE: From $38.61 to $93.83
