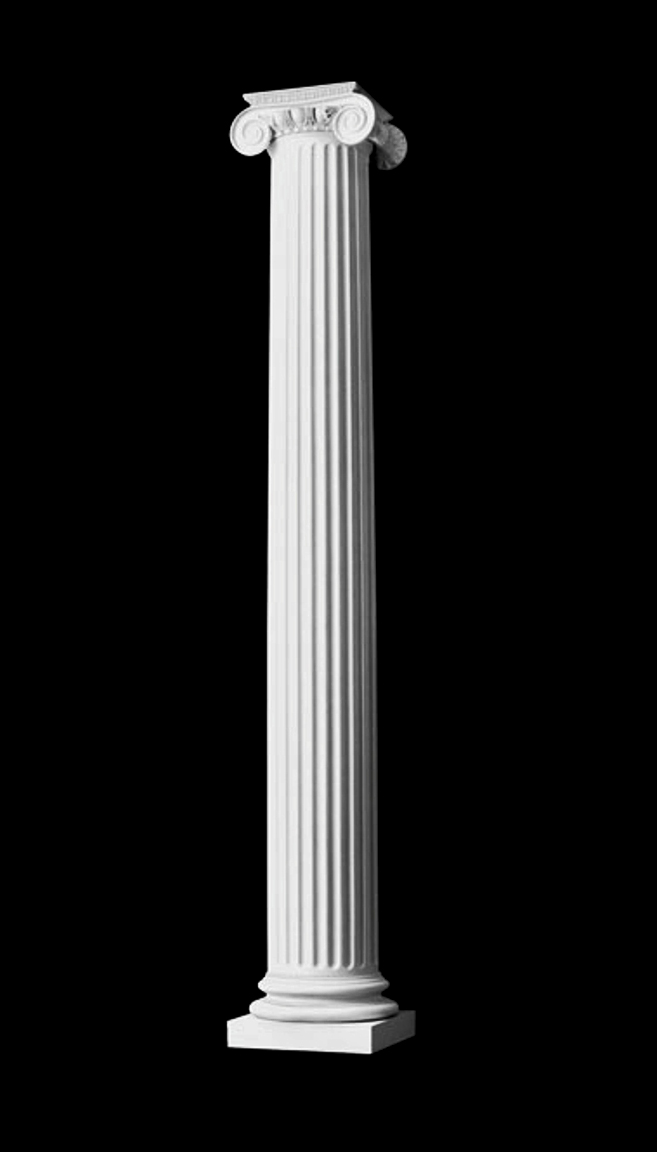

Design #229 - Ionic Order (Roman) - PolyStone® Column - Fluted, Tapered Shaft - Roman Ionic Capital & Ionic (Attic) Base Molding/Plinth
|
Item Number: PSX-FL-TP-A-RI-ATC-PY-2
To complete your order, call for a freight estimate.
IONIC ORDER (ROMAN)
POLYSTONE® COMPOSITE COLUMNS
(FLUTED, ROUND, TAPERED)
IONIC (ATTIC) BASE MOLDING & PLINTH
DESIGN 229
MATERIAL & MANUFACTURING PROCESS
Composed of polyester resin, fiberglass & marble dust trix-spun-cast in existing
molds. Custom molds can be created for unique specifications.
COLUMN SHAFT
PolyStone® column shaft made of polyester resin, fiberglass and marble dust.
Column shaft is fluted and tapered (bottom third of the shaft is straight,
with the remaining 2/3 tapering to the neck). Shaft can be cut down to your
desired overall height (cut from the bottom of the shaft only). Classic
astragal (bead) molded onto shaft.
CAPITAL, BASE MOLDING & PLINTH
Roman Ionic capital is made of paint-grade, load-bearing polyester resin.
Ionic (Attic) base/plinth set made of lightweight polyurethane. Heavier cast marble base/plinth set available for an upcharge. See spec sheet for dimensions.
|
|
|
FLEXIBILITY:
• Tabbing of column
• Cutting to overall length available
• Interchangeable bases & plinths
|
|
SHIPPING:
• Quick Ship available on some sizes
• Boxing, collaring & crating available
|
|
RESTOCKING:
• Yes, excluding custom and altered products
• Fee will be applied
|
|
FLUTING:
• Molded flutes available for sizes 6" - 18"
• 6" size: (16) flutes - 8" - 18" sizes: (24) flutes
• Flutes end 10-3/4" from Attic base for trimming to exact height
• Flute width varies depending on diameter & taper of column shaft
• Automated flutes are available for adjusted flute lengths upon request
|
|
|
|
AVAILABLE PLAN SHAPES
|
|
|
|
ADDITIONAL INFORMATION & DOWNLOADS
|
|
|
|
|
|
PLEASE CONTACT A CHADSWORTH SALES CONSULTANT FOR ADDITIONAL INFORMATION
|
|
|
PRICE: From $38.61 to $93.83
