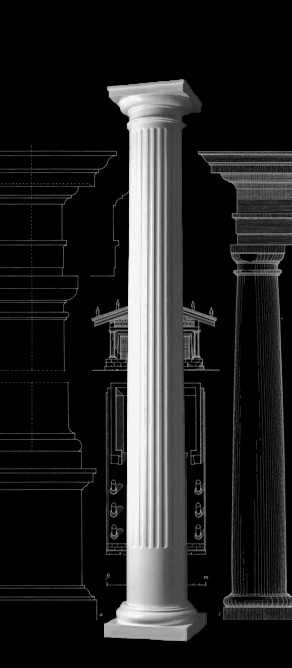

Design #701-7 - Tuscan Order - (Chop & Spray Fiberglass) Column - Fluted, Round, Tapered - Includes Fiberglass Tuscan Capital & Base Molding / Plinth


PRICE: Request a Quote
Item Number: FGX-FL-TP-A-TSC-FG-7

TUSCAN ORDER
CHOP & SPRAY FIBERGLASS COLUMNS
(FLUTED, ROUND, TAPERED)
DESIGN 701-7

COLUMN SIZES
BOTTOM DIAMETERS: 14" – 36"
OVERALL HEIGHTS: 12' – 28'


Request a Quotation for PolyStone® Design #200 Columns - Chadsworth Columns: shop.columns.com

MATERIAL & MANUFACTURING PROCESS
Composed of high-density fiberglass and polyester resin material.
Each column shaft, capital & base molding / plinth is sanded and
primed.  Custom molds can be created for your unique column
specifications.  Our Chop-and-Spray Fiberglass Columns are great
for commercial projects and residential projects.

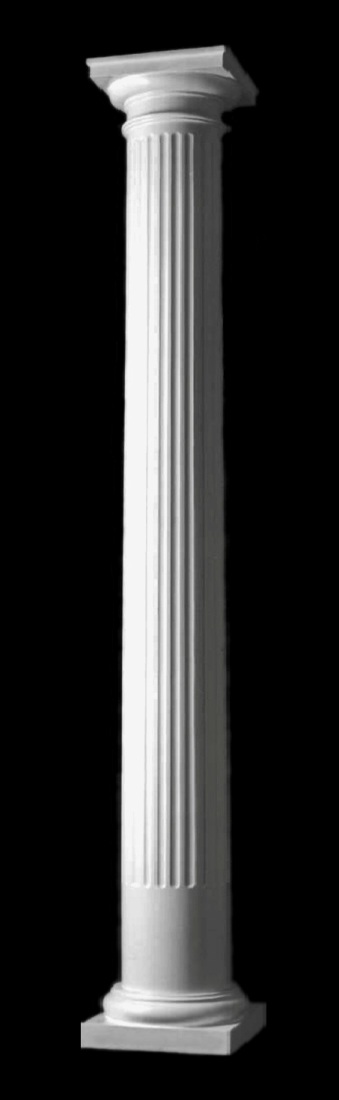

COLUMN SHAFT
Fiberglass column shaft mixed with polyester resin.  Column shaft is
fluted and architecturally tapered (bottom third of the shaft is straight,
with the remaining 2/3 tapering to the neck).  Paint grade column
shaft (includes gel coat).  Shaft can be cut down to your desired overall
height by trimming the bottom of the shaft only with a circular
saw
equipped with a masonry blade.  Classic astragal (bead) molded onto
the column shaft.

CAPITAL, BASE MOLDING & PLINTH
Tuscan capital, base molding & plinth included – made from fiberglass
material.
Please also note that column components are designed to
wrap around the shaft
as decorative sleeves they do not add height.
Please see below for
Decorative Capital options and alternative base
molding / plinth designs.  Please see options below.






LOWER/BOTTOM DIAMETER14" - 36"

UPPER/TOP DIAMETER:  12" - 30"

OVERALL HEIGHT:  12' - 28'

WALL THICKNESS:  1/4"

INTERIOR ROUND CLEARANCE:  Dependent on size of column

INTERIOR SQUARE CLEARANCE:  Dependent on size of column

ACCEPTABLE TOLERANCE:  1/8"

SHAFT WEIGHT:  Dependent on size of column
LOAD-BEARING CAPACITY:  Dependent on size of column

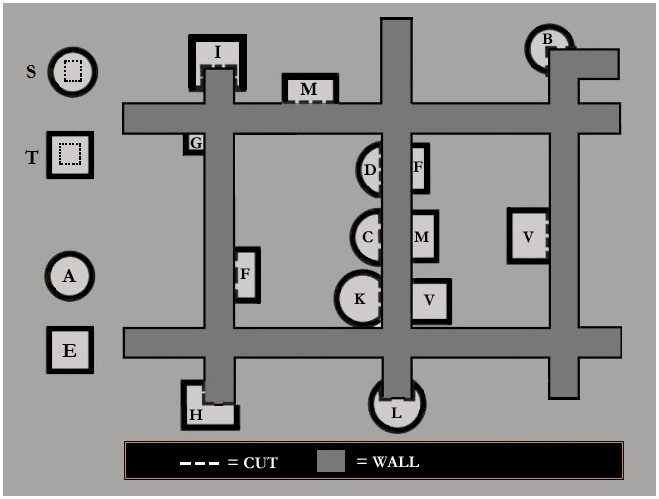

PLAN SHAPE A PLAN SHAPE B PLAN SHAPE C PLAN SHAPE D PLAN SHAPE K PLAN SHAPE L PLAN SHAPE S
Full Round 3/4 Corner Round
2/3 Chord Round
Half Round 3/4 Chord Round Slide-On Round Split For Reassembly




DECORATIVE CAPITALS
SCAMOZZI ROMAN IONIC
GREEK CORINTHIAN ROMAN CORINTHIAN
BASE MOLDING & PLINTHS
TUSCAN IONIC (ATTIC)






FLEXIBILITY:
• Able to be split & tabbed for reassembly
• Shaft will have proper 1/3, 2/3 taper (entasis)
• Great for Commercial & Residential projects
• Assortment of capitals, bases & plinths available


S
HIPPING:
• Boxing, collaring, and crating available
• Review SHIPPING INSTRUCTIONS


RESTOCKING:
• Yes, excluding custom and altered products
• Fee will be applied



 WARRANTY:

Click to review the full warranty


PHOTO GALLERY:
•      www.columnsphoto.com

ADDITIONAL DESIGNS:

• For additional column designs, please
   visit our Columns Design Page



Please contact a Chadsworth Sales Consultant for additional information.  1-800-486-2118 or sales@columns.com
