Fredericksburg 1 or Roof Top - PolyStone® Architectural Spindle
|
Item Number: F1-22-9
ARCHITECTURAL SPINDLES
POLYSTONE®
– THE FREDERICKSBURG 1 OR ROOFTOP DESIGN –
(RESIDENTIAL & COMMERCIAL SPECIFICATIONS)

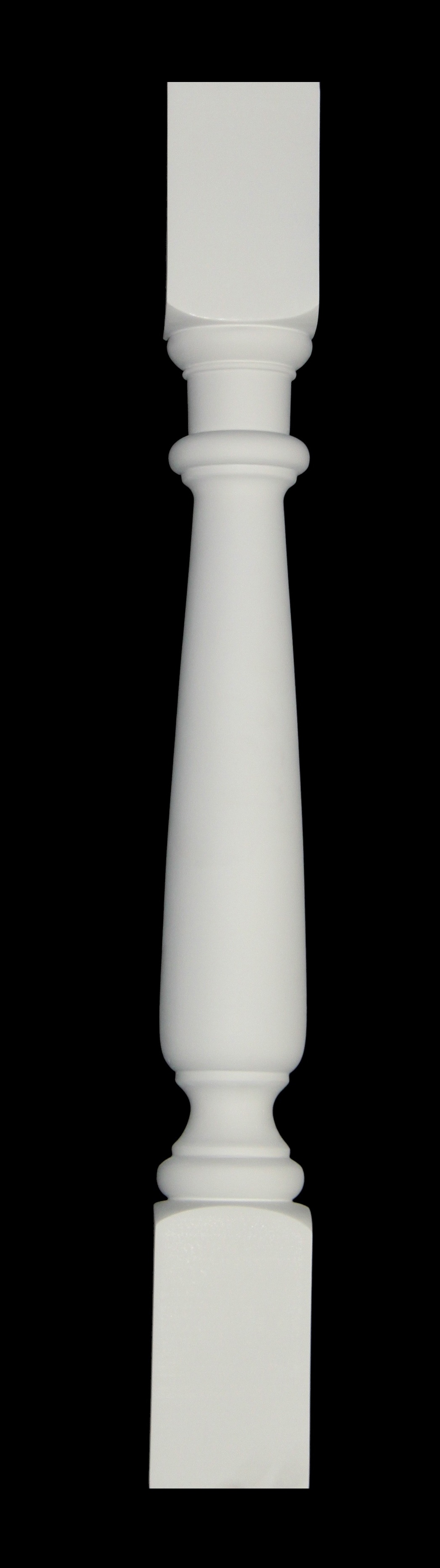

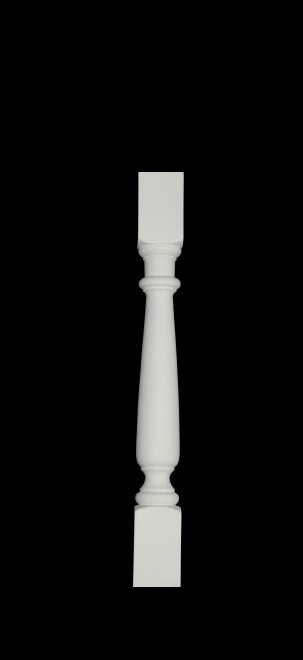

Chadsworth's Fredericksburg 1 Standard or Rooftop Architectural Spindle is designed for those who want to add a touch of southern style to a project. The Fredericksburg spindle may be utilized in both residential projects & commercial projects - rooftop or balcony. Deck or stairs. Made from our top-of-the-line PolyStone® material, this baluster is the perfect selection for balustrade systems that require linear, stair, and radius elevations.
|
RESIDENTIAL
|
|
|
|
BALUSTER
SPECIFICATIONS
|
4" SPHERE CODE¹
SPACING
|
COMMON SPACING²
[NON-CODE]
|
|
NAME
|
FREDERICKSBURG 1
|
–
|
|
ITEM #
|
F1-22
|
–
|
|
RAIL SYSTEM HEIGHT³
|
36-3/8"
|
36-3/8"
|
|
SPACING
|
2-5/8"
|
3-1/8"
|
|
SPACING ON CENTER
|
6"
|
6-1/2"
|
|
BALUSTERS NEEDED
PER LINEAR FOOT (LF)
|
2
|
1.8
|
|
WEIGHT LF BALUSTER,
RAIL & HARDWARE
|
45 lbs
|
42 lbs
|
|
BALUSTER
WEIGHT
|
15.9 lbs
|
15.9 lbs
|
|
EXTENDED BALUSTER
WEIGHT
|
16.5 lbs
|
16.5 lbs
|
|
WEIGHT LF
TOP RAIL
|
6 lbs
|
6 lbs
|
|
WEIGHT LF
BOTTOM RAIL
|
7 lbs
|
7 lbs
|
|
|
|
|
|
|
4" SPHERE CODE¹
SPACING
|
COMMON SPACING²
[NON-CODE]
|
|
|
FREDERICKSBURG 1
|
–
|
|
|
F1-22
|
–
|
|
|
43-1/2"
|
43-1/2"
|
|
|
2-5/8"
|
3-1/8"
|
|
|
6"
|
6-1/2"
|
BALUSTERS NEEDED
PER LINEAR FOOT (LF)
|
2
|
|
WEIGHT LF BALUSTER,
RAIL & HARDWARE
|
51 lbs
|
|
|
|
19 lbs
|
|
|
|
6 lbs
|
|
|
|
|
7 lbs
|
Customers are responsible for local code adherence.
¹4" Sphere Code spacing requires that a 4" ball cannot fit through any spacing between balusters.
²Common [non-code] spacing can be used in non-access applications or when spacing codes are not required.
³Building codes for residential installations of balusters are typically specified at 36" in height.
CODE & HEIGHT CONSIDERATIONS
In some locales, the Residential Building Code may require a balustrade height greater than 36". In these instances, the Extended Height Balusters & Newel Posts may be necessary.
INSTALLATION INSTRUCTIONS
Click Here for PolyStone® Baluster Installation Instructions.
POLYSTONE® BALUSTER SPECIFICATIONS
Click Here for PolyStone® Baluster Specifications.
POLYSTONE® BALUSTER WARRANTY
