IONIC ORDER (GREEK ANGULAR)
ARCHITECTURAL WOOD COLUMNS
(PLAIN, TAPERED)
DESIGN 140
– CUSTOM COLUMN SIZING –
MATERIAL & MANUFACTURING PROCESS
Western Red Cedar, Clear Heart Redwood, pine, poplar, & mahogany are just
a few of the popular wood species utilized for our Architectural Wood Columns.
If you desire another wood species, please inform us, and it will be our pleasure
to accomodate. To ensure that our wood columns are of the highest quality, we
process each order with individualized care and attention. First, the column's
height and diameter are entered into our computer system which has been
programmed to calculate the exact proportions necessary to produce your
beautiful exterior wood columns and architectural interior wood columns.
COLUMN SHAFT

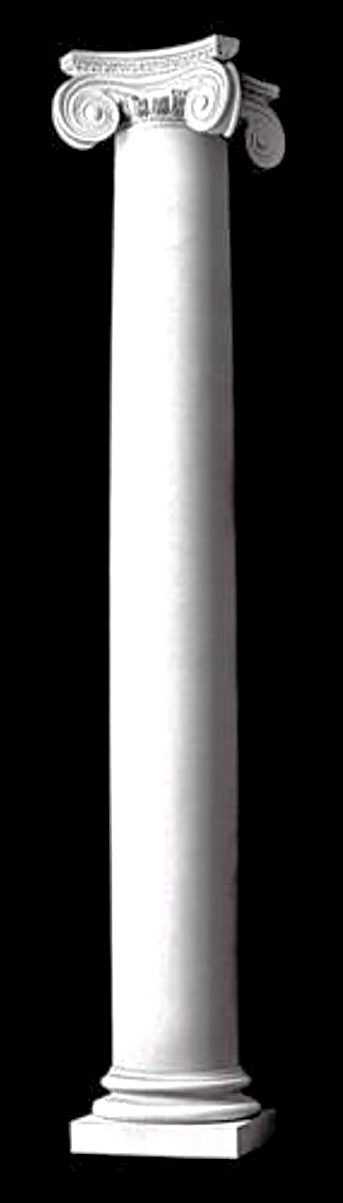

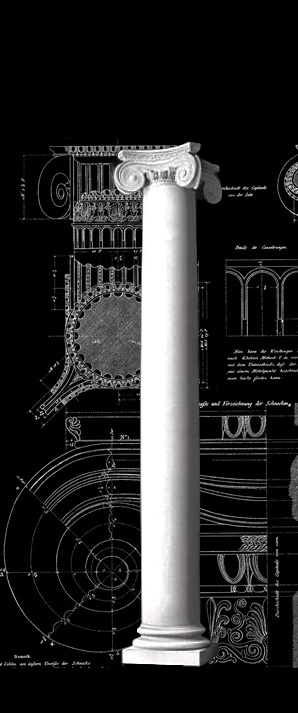

Plain, Tapered column shaft. The Greek Angular Ionic column shaft is
architecturally correct according to Vignola's classical column specifications.
Select from our wide selection of column design shapes to match your
architectural style and project specifications. We use Western Red Cedar,
Clear Heart Redwood, pine, poplar, mahogany, teak or any other wood species
desired. Wood materials are available in both solid board and finger-joint
form. Each column is made to your exact specifications. We recommend using
either finger-joint redwood or cedar for interior columns that will be stained or
left natural with a clear protective finish to display the grain of the wood.
CAPITAL, BASE MOLDING & PLINTH
CAPITAL: Design 140 is characterized by a Greek Angular Ionic capital.
Standard materials are polyurethane for the smaller column sizes and fiberglass
for the larger column sizes. Wood capitals are available for all sizes at an upcharge.
We are able to replicate for historic restoration if you have as much as a quarter
of the existing capital including corner and any side design. Please contact a
Chadsworth Sales Consultant for additional capital materials and information.
BASE MOLDING: Design 140 has an Ionic (Attic) Base. Base materials
follow the same parameters as the capitals. PLINTH: We offer a variety
of Plinth materials, specific to your column sizes and interior or exterior applications.
|
LOWER/BOTTOM DIAMETER: Custom
UPPER/TOP DIAMETER: Custom
OVERALL HEIGHT: Custom
STAVE THICKNESS: 1-9/16"
INTERIOR ROUND CLEARANCE: Dependent on size of column
INTERIOR SQUARE CLEARANCE: Dependent on size of column
ACCEPTABLE TOLERANCE: 1/8"
SHAFT WEIGHT: Dependent on size of column
LOAD-BEARING CAPACITY: Dependent on size of column
|
|
FLEXIBILITY:
• Able to be split & tabbed for reassembly
• Client determines exact overall height
• Other wood species available upon request (may result in higher cost).
|
|
SHIPPING:
• Boxing, collaring & crating available
|
|
RESTOCKING:
• None. All Architectural wood columns are made to order, and therefore cannot be returned.
|
|
AVAILABLE PLAN SHAPES
|
|
|
|
ADDITIONAL INFORMATION & DOWNLOADS
|
|
|
|
|
|
PLEASE CONTACT A CHADSWORTH SALES CONSULTANT FOR ADDITIONAL INFORMATION
|
