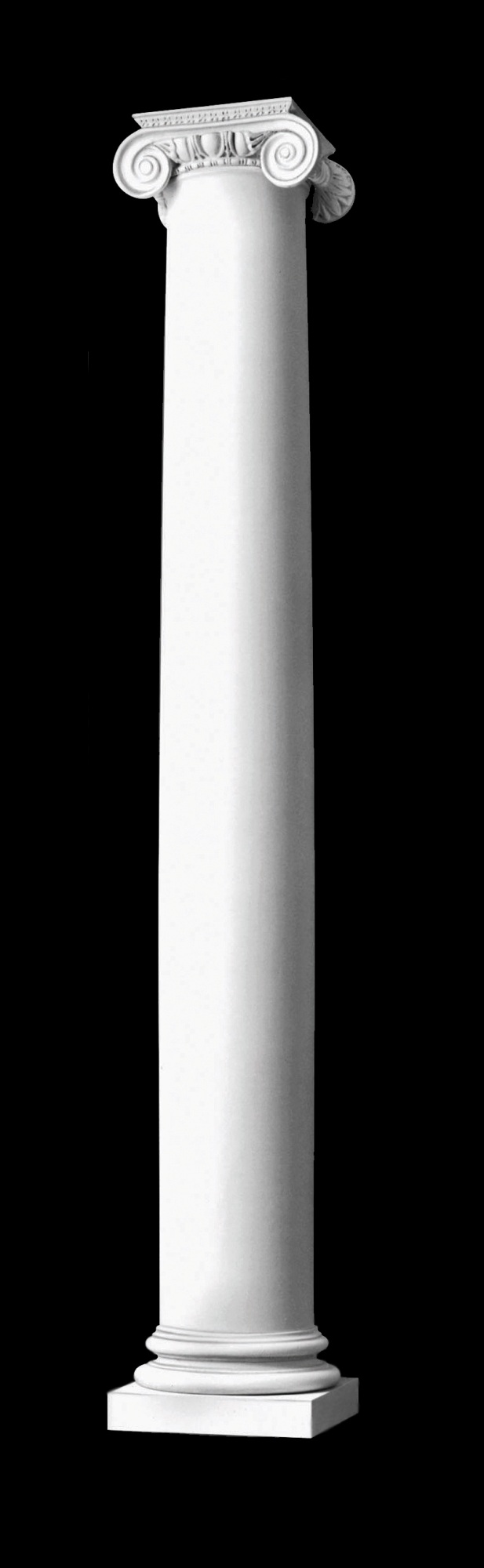

Design #228 - Ionic Order (Roman) - PolyStone® Column - Plain, Tapered Shaft - Roman Ionic Capital & Ionic (Attic) Base Molding/Plinth


PRICE: Request a Quote
Item Number: PSX-PL-TP-A-RI-ATC-PY-2

IONIC ORDER (ROMAN)
POLYSTONE® COMPOSITE COLUMNS
ROMAN IONIC CAPITAL
(PLAIN, ROUND, TAPERED)
IONIC (ATTIC) BASE MOLDING & PLINTH
DESIGN 228



MATERIAL AND MANUFACTURING PROCESS: Composed of
polyester resin, fiberglass, and marble dust trix-spun-cast in
existing column molds.  Custom column molds can be created
for unique specifications.

COLUMN SHAFT:  PolyStone® column shaft made of polyester
resin, fiberglass, and marble dust.  Column shaft is plain/smooth
and tapered (bottom third of the shaft is straight, with the remaining
 2/3 tapering to the neck).  Column shaft can be cut down to your
desired overall height (cut from the bottom of the column shaft
only).  Classic astragal (bead) is molded onto the column shaft.
COLUMN CAPITAL, BASE MOLDING & PLINTH:  Roman
Ionic Capital and Ionic (Attic) Base Molding / Plinth
composed of a polyurethane material, but may be upgraded
to our premium, heavier cast marble material for an upcharge.
Please also note that column components are designed to
slide around the column shaft as decorative sleeves – they
do not add height.  See spec sheet for dimensions.





LOWER/BOTTOM DIAMETER:  5-5/8" – 24"

UPPER/TOP DIAMETER:  5-1/2" – 20"

OVERALL HEIGHT:  Mold Sizes

WALL THICKNESS:  1/4"  –  5/8"

INTERIOR ROUND CLEARANCE:  2-1/2"  –  17-1/2"

INTERIOR SQUARE CLEARANCE:  2-7/16" – 17-1/2"

ACCEPTABLE TOLERANCE: 1/8"

SHAFT WEIGHT: 46 lbs  950 lbs +/-

FIRE RATING: Class A; Type 1







PLAN SHAPE A PLAN SHAPE B PLAN SHAPE C PLAN SHAPE D PLAN SHAPE K PLAN SHAPE L PLAN SHAPE S
Full Round 3/4 Corner Round
2/3 Chord Round
Half Round 3/4 Chord Round Slide-On Round Split For Reassembly

CLICK HERE TO VIEW SQUARE COLUMN SHAPES





FLEXIBILITY:
• Tabbing of column
• Cutting to overall length available
• Changeable capitals, bases, and plinths


S
HIPPING:
• Quick Ship available on some sizes
• Boxing, collaring, and crating available
• Review SHIPPING INSTRUCTIONS


RESTOCKING:
• Yes, excluding custom and altered products
• Fee will be applied



 WARRANTY:
• For the life of the original installation

Click to review the full warranty


PHOTO GALLERY:
•      www.columnsphoto.com

ADDITIONAL DESIGNS:

• For additional column designs, please
   visit our Columns Design Page



Please contact a Chadsworth Sales Consultant for additional information.  1-800-486-2118 or sales@columns.com
