HOME > COLUMNS > Design #232 - Ionic Order (Scamozzi) - PolyStone® Column - Plain, Tapered Shaft - Scamozzi Capital & Ionic (Attic) Base Molding/Plinth

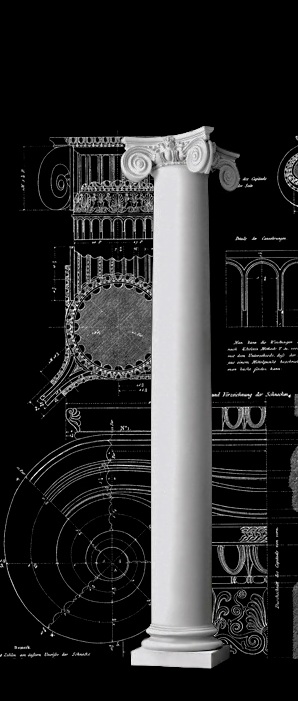

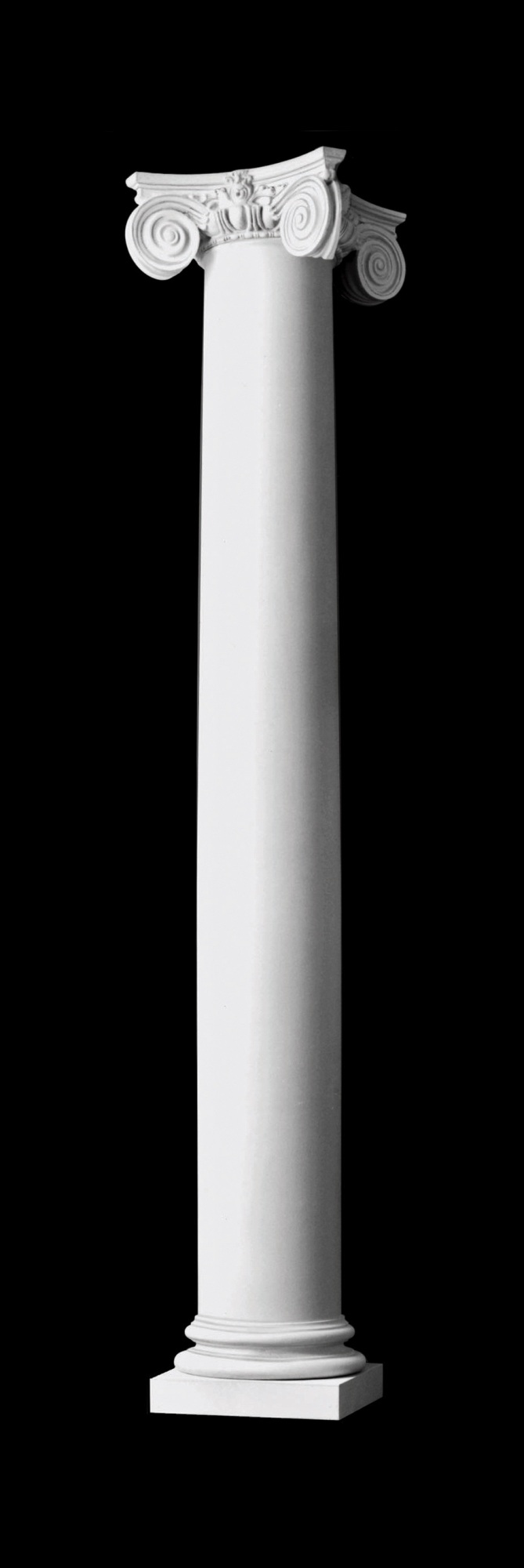

Design #232 - Ionic Order (Scamozzi) - PolyStone® Column - Plain, Tapered Shaft - Scamozzi Capital & Ionic (Attic) Base Molding/Plinth
|
Item Number: PSX-PL-TP-A-SCMZ-ATC-PY-2
To complete your order, call for a freight estimate.
IONIC ORDER (ROMAN)
POLYSTONE® COMPOSITE COLUMNS
(PLAIN, ROUND, TAPERED)
SCAMOZZI CAPITAL DESIGN
IONIC (ATTIC) BASE MOLDING & PLINTH
DESIGN 232
MATERIAL & MANUFACTURING PROCESS
Composed of polyester resin, fiberglass & marble dust trix-spun-cast in existing
molds. Custom column molds can be created for unique column specifications.
COLUMN SHAFT
PolyStone® column shaft made of polyester resin, fiberglass and marble dust.
The column shaft is plain/smooth and tapered (bottom third of the shaft is
straight, with the remaining 2/3 tapering to the neck). Shaft can be cut down
to your desired overall height (cut from the bottom of the shaft only).
Classic astragal (bead) molded onto shaft.
CAPITAL, BASE MOLDING & PLINTH
Scamozzi capital is made of paint-grade, load-bearing polyester resin.
Ionic (Attic) base/plinth set made of lightweight polyurethane. Heavier
cast marble base / plinth set available for an upcharge. Please see spec
sheet for complete column dimensions.
|
|
|
FLEXIBILITY:
• Tabbing of column
• Cutting to overall length available
• Interchangeable bases & plinths
|
|
SHIPPING:
• Quick Ship available on some sizes
• Boxing, collaring & crating available
|
|
RESTOCKING:
• Yes, excluding custom and altered products
• Fee will be applied
|
|
|
|
AVAILABLE PLAN SHAPES
|
|
|
|
ADDITIONAL INFORMATION & DOWNLOADS
|
|
|
|
|
|
PLEASE CONTACT A CHADSWORTH SALES CONSULTANT FOR ADDITIONAL INFORMATION
|
|
|
PRICE: From $38.61 to $93.83
Our Split Column Kit is available for reassembly of Split PolyStone® Column components, including: Column Shaft, Column Capital & Column Base.
|
Chadsworth's Design #228 PolyStone® Column with a Roman Ionic capital & Ionic (Attic) base is composed of polyester resin, fiberglass and marble dust matrix-spun-cast in existing molds. Custom molds can be created for unique specifications.
|
Chadsworth's Design #233 - Fluted PolyStone® Column - Scamozzi Capital & Ionic (Attic) Base. Composed of polyester resin, fiberglass and marble dust matrix-spun-cast in existing molds. Custom molds can be created for unique specifications.
|
Chadsworth's Design #238. Plain, tapered. Empire with Necking capital, Attic base molding and plinth.
|
Chadsworth's Design #240. Plain, tapered. Greek Greek Angular Ionic capital, Attic base molding and plinth.
| |
