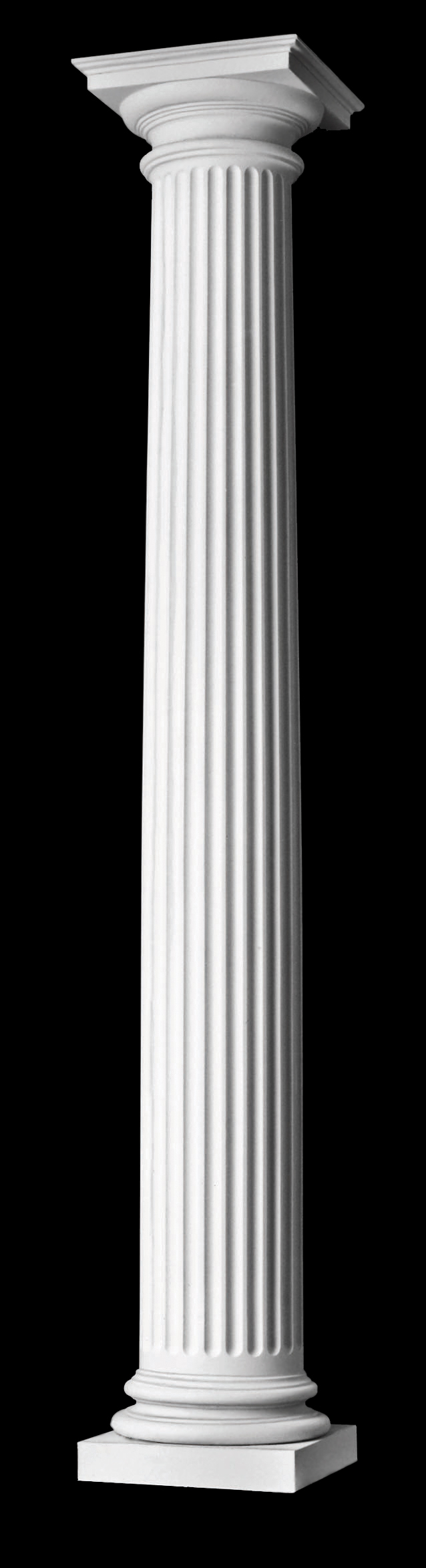

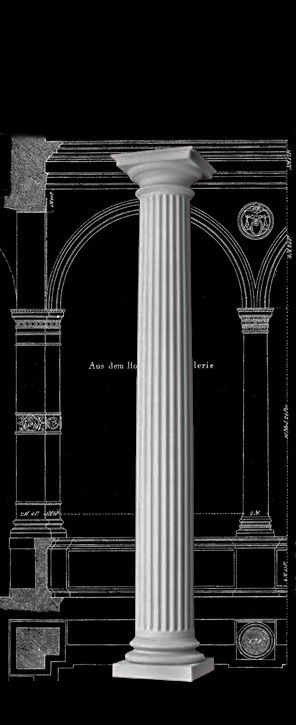

Design #209 Doric Order (Roman) PolyStone® Column Fluted, Tapered Shaft Roman Doric Capital & Ionic (Attic) Base Moulding/Plinth


PRICE: Request a Quote
Item Number: PSX-FL-TP-A-RD-ATC-CM-2

DORIC ORDER (ROMAN)
POLYSTONE® COMPOSITE COLUMNS
(FLUTED, ROUND, TAPERED)
IONIC (ATTIC) BASE MOLDING & PLINTH
DESIGN 209



MATERIAL AND MANUFACTURING PROCESS:  Composed of
polyester resin, fiberglass, and marble dust trix-spun-cast in
existing column molds.  Custom column molds can be created
for unique specifications.

COLUMN SHAFT:  PolyStone® column shaft made of polyester
resin, fiberglass, and marble dust.  Column shaft is fluted and
tapered (bottom third of the shaft is straight, with the remaining
2/3 tapering to the neck).  Molded flutes available for column
diameters (bottom) 6" – 18".  Column shaft has Ionic Fluting
with (24) flutes for 8" – 18" column sizes and (16) flutes for
6" column sizes.  Column shaft can be cut down to your desired
overall height (cut from the bottom of the column shaft only).
Classic astragal (bead) is molded onto the column shaft.
COLUMN CAPITAL, BASE MOLDING & PLINTH:  Roman Doric
capital and Ionic (Attic) Base Molding / Plinth composed of
a polyurethane material, but may be upgraded to our premium,
heavier cast marble material for an upcharge.  Please also note
that column components are designed to slide around the column
shaft as decorative sleeves – they do not add height.





LOWER/BOTTOM DIAMETER:  5-5/8" –  20"

UPPER/TOP DIAMETER:  5-1/2" –  17"

OVERALL HEIGHT:  5'-06" – 20'

WALL THICKNESS:  1/4"  –  1/2"

INTERIOR ROUND CLEARANCE:  2-1/2"  –  14-1/2"

INTERIOR SQUARE CLEARANCE:  2 -7/16" – 10-7/16"

ACCEPTABLE TOLERANCE:  1/8"

SHAFT WEIGHT:  46 lbs  –  821 lbs +/-

FIRE RATING:  Class A; Type 1







PLAN SHAPE A PLAN SHAPE B PLAN SHAPE C PLAN SHAPE D PLAN SHAPE K PLAN SHAPE L PLAN SHAPE S
Full Round 3/4 Corner Round
2/3 Chord Round
Half Round 3/4 Chord Round Slide-On Round Split For Reassembly

S
QUARE
PLAN SHAPES:

Tapered

Non-Tapered





FLEXIBILITY:
• Tabbing of column
• Cutting to overall length available
• Changeable capitals, bases, and plinths

FLUTING:
• Molded flutes available for sizes 6" – 18"
• 6" column size: (16) flutes
• 8" – 18" column sizes: (24) flutes
• Spacing between the flute end and base
  molding vary according to column size.
  Please call for details.
• Flute width varies depending on diameter
  and taper of the column shaft
• Automated flutes are available for adjusted
  flute lengths upon request (Read More)


S
HIPPING:
• Quick Ship available on some sizes
• Boxing, collaring, and crating available
• Review SHIPPING INSTRUCTIONS


RESTOCKING:
• Yes, excluding custom and altered products
• Fee will be applied



 WARRANTY:
• For the life of the original installation

Click to review the full warranty


PHOTO GALLERY:
•      www.columnsphoto.com

ADDITIONAL DESIGNS:

• For additional column designs, please
   visit our Columns Design Page



Please contact a Chadsworth Sales Consultant for additional information.  1-800-486-2118 or sales@columns.com
