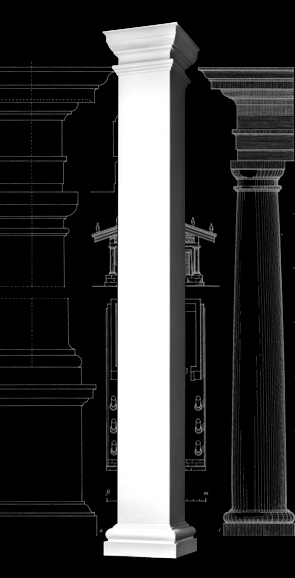

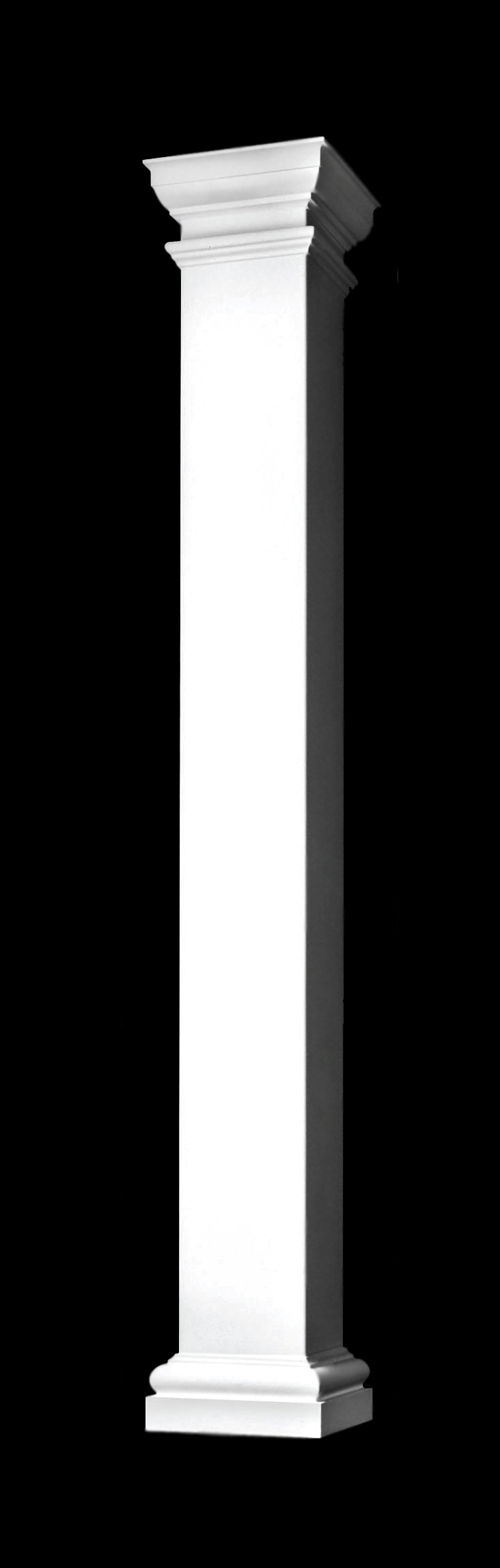

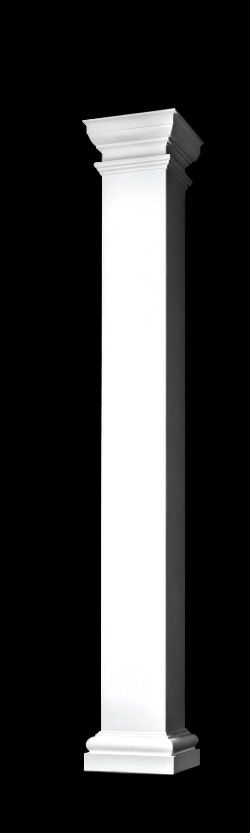

Design #200S - Tuscan Order - PolyStone® Column - Plain, Square, Non-Tapered Shaft - Tuscan Capital & Base Molding/Plinth


PRICE: Request a Quote
Item Number: PSX-PL-NT-E-TSC-PY-2
To complete your order, call for a freight estimate.

TUSCAN ORDER
POLYSTONE® COMPOSITE COLUMNS
(PLAIN, SQUARE, NON-TAPERED)
DESIGN 200S



MATERIAL AND MANUFACTURING PROCESS:  Composed of
polyester resin, fiberglass, and marble dust matrix-spun-cast in
existing column molds.  Custom column molds can be created
for unique specifications.

COLUMN SHAFT:  PolyStone® column shaft made of polyester
resin, fiberglass, and marble dust.  Column shaft is plain/smooth
and non-tapered.  Column shaft can be cut down to your desired
overall height (cut from the bottom of the column shaft only).
Astragal is applied.
COLUMN CAPITAL, BASE MOLDING & PLINTH:  Tuscan capital,
base molding and plinth included. Polyurethane capital & base is
standard. Please also note that column components
are designed to slide around the column shaft as decorative
sleeves – they do not add height.



LOWER/BOTTOM DIAMETER:  6"  –  16"

UPPER/TOP DIAMETER:  6"  –  16"

OVERALL HEIGHT:   6' –  20'

WALL THICKNESS:  1/4"

INTERIOR ROUND CLEARANCE:  5-3/8"  –  15"

INTERIOR SQUARE CLEARANCE:  3" –  15"

ACCEPTABLE TOLERANCE:  1/4"

SHAFT WEIGHT:   46 lbs  –  602 lbs +/-

FIRE RATING:  Class A; Type 1










SHAPE E

SHAPE F

SHAPE G

SHAPE H

SHAPE I

SHAPE J

SHAPE M

SHAPE T

SHAPE V


Full
Square
Half
Square
Corner
Square
3/4 Corner
Square
Slide-On
Square
Inside Corner
Square
2/3 Chord
Square
Split For
Reassembly
3/4
Square
CLICK HERE TO VIEW ROUND COLUMN SHAPES





FLEXIBILITY:
• Tabbing of column
• Cutting to overall length available
• Changeable capitals, bases, and plinths


S
HIPPING:
• Quick Ship available on some sizes
• Boxing, collaring, and crating available
• Review SHIPPING INSTRUCTIONS


RESTOCKING:
• Yes, excluding custom and altered products
• Fee will be applied



 WARRANTY:
• For the life of the original installation

Click to review the full warranty


PHOTO GALLERY:
•      www.columnsphoto.com

ADDITIONAL DESIGNS:

• For additional column designs, please
   visit our Columns Design Page



Please contact a Chadsworth Sales Consultant for additional information.  1-800-486-2118 or sales@columns.com
