Architectural PolyStone® Balusters - The Williamsburg Design - Residential Applications
|
Item Number: W1-22-9
CHADSWORTH COLUMNS
POLYSTONE® COMPOSITE BALUSTERS
THE WILLIAMSBURG DESIGN
RESIDENTIAL APPLICATIONS
Chadsworth's Williamsburg Residential Architectural Baluster is
reminiscent of the Greek Revival and Neo-Classical styles. Our
Williamsburg residential baluster design is multi-faceted, as it may
be utilizedwith radius rails, straight rails, and stairway rails.
Crafted from our award-winning PolyStone® material, which is a
durable fiberglass-reinforced polymer composite material. Each
baluster is hand crafted and hand sanded to reveal a final product
that is beautifully smooth with no visible seams.
Review our Williamsburg residential baluster specifications
below to find the exact sizes and balustrade components for
your project. You will also find additional downloads, such as:
installation instructions, product warranty, baluster application
informations, and much more!
Feel free to call a Chadsworth Sales Consultant today, or
simply Request A Quote - above - for your balustrade pricing!
1.800.486.2118
|
|
WILLIAMSBURG
DESIGN
|
4" SPHERE¹
CODE SPACING
|
COMMON SPACING²
[NON-CODE]
|
|
Rail System Height³
|
37-1/4"
|
37-1/4"
|
|
Spacing
|
1-1/4"
|
3"
|
|
Spacing On Center
|
6-3/4"
|
8-1/2"
|
|
Balusters Needed per Linear Foot [LF]
|
1.778
|
1.37
|
|
Weight LF Baluster, Rail & Hardware
|
81 lbs
|
71 lbs
|
|
Weight Baluster
|
26 lbs
|
26 lbs
|
|
Weight Extended Baluster
|
33 lbs
|
33 lbs
|
|
Weight LF Tall Profile Top Rail
|
14.5 lbs
|
14.5 lbs
|
|
Weight LF Tall Profile Bottom Rail
|
17.5 lbs
|
17.5 lbs
|
|
Weight LF Short Profile Top Rail
|
9.5 lbs
|
9.5 lbs
|
|
Weight LF Short Profile Bottom Rail
|
13 lbs
|
13 lbs
|
Customers are responsible for local code adherence.
¹ 4" Sphere Code spacing requires that a 4" ball cannot fit through any spacing between balusters.
² Common [non-code] spacing can be used in non-access applications or when spacing codes are not required.
³ Building codes for residential installations of balusters are typically specified at 36" in height.
|
|

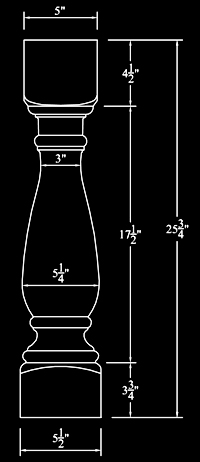

STRAIGHT
APPLICATIONS
|

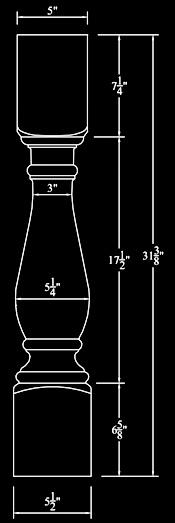

STRAIGHT OR STAIR
APPLICATIONS
|
|
|
|
|

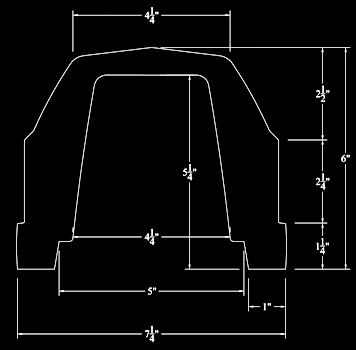

TALL PROFILE
RAILING
|
|
|
|
TOP RAIL
|

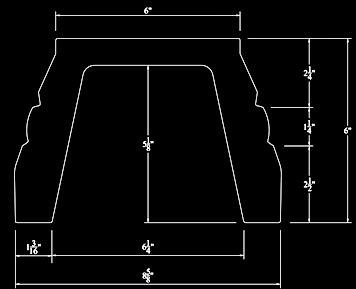

BOTTOM RAIL
|
|
|
|
|
|

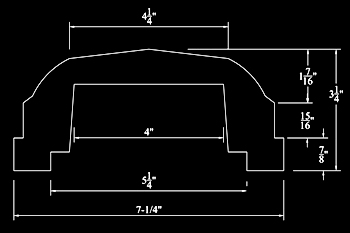

TOP RAIL
|

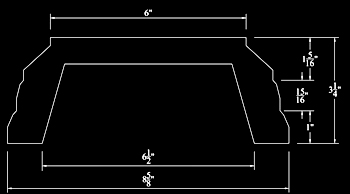

BOTTOM RAIL
|
|
|
|

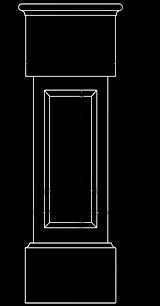

NEWEL POSTS
|
BALL TOPS
|

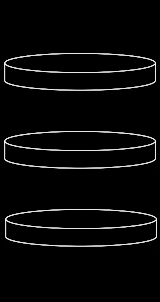

RISERS
|
|
|
|
|
|
|
|
|
* These options are recommended for the Williamsburg Residential baluster design.
|
|
|
