Item Number: ARCHX-FL-TP-A-SCAMZ-ATC

To complete your order, call for a freight estimate.

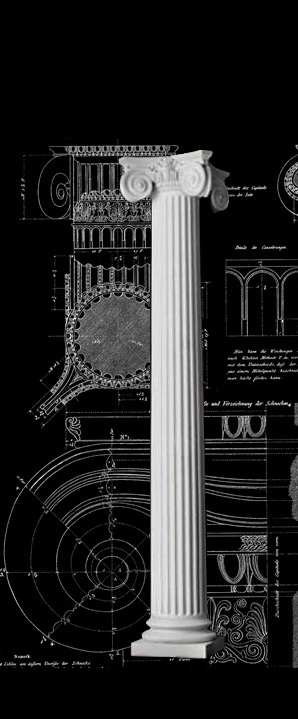

IONIC ORDER (ROMAN)

SCAMOZZI CAPITAL

ARCHITECTURAL WOOD COLUMNS

(FLUTED, TAPERED)

DESIGN 133

– CUSTOM COLUMN SIZING –

MATERIAL & MANUFACTURING PROCESS

Western Red Cedar, Clear Heart Redwood, pine, poplar, & mahogany a
re just a few of the popular wood species utilized for our Architectural
Wood Columns. If you desire another wood species, please inform us,
and it will be our pleasure to accomodate. To ensure that our wood
columns are of the highest quality, we process each order with
individualized care and attention. First, the column's height and diameter
are entered into our computer system which has been programmed to
calculate the exact proportions necessary to produce your beautiful
exterior wood columns and architectural interior wood columns.

COLUMN SHAFT

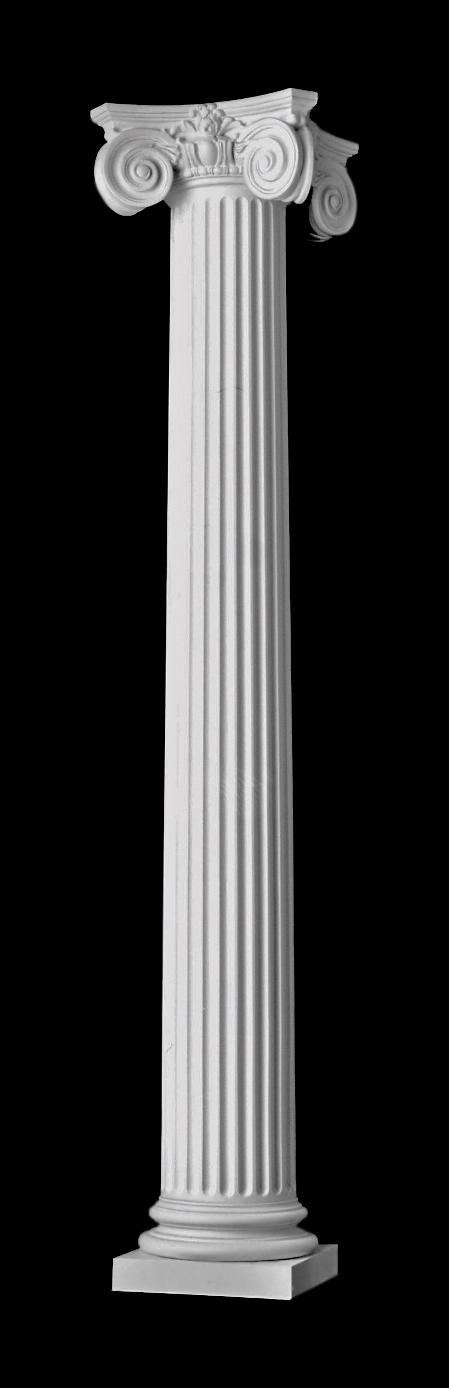

Fluted, Tapered column shaft. The Scamozzi column shaft is architecturally
correct according to Vignola's classical column specifications. Select from
our wide selection of column design shapes to match your architectural style
and project specifications. The length and placement of the fluting can be
altered to achieve several column design styles. Fluting may be either at the
top or bottom one-third, one-half, or two-thirds of the column shaft. We
use Western Red Cedar, Clear Heart Redwood, pine, poplar, mahogany, teak
or any other wood species desired. Wood materials are available in both solid
board and finger-joint form. Each column is made to your exact specifications.
We recommend using either finger-joint redwood or cedar for interior columns
that will be stained or left natural with a clear protective finish to display the
grain of the wood.

CAPITAL, BASE MOLDING & PLINTH

CAPITAL: Design 133 is characterized by a Scamozzi capital. Standard

materials are polyurethane for the smaller column sizes and fiberglass for the

larger column sizes. Load-bearing capabilities. Wood capitals are available

for all sizes at an upcharge. We are able to replicate for historic restoration if

you have as much as a quarter of the existing capital including corner and any

side design. Please contact a Chadsworth Sales Consultant for additional

capital materials and information. BASE MOLDING: Design 133 has an

Ionic (Attic) Base. Base materials follow the same parameters as the capitals.

PLINTH: We offer a variety of Plinth materials, specific to your column

sizes and interior or exterior applications.

LOWER/BOTTOM DIAMETER: Custom

UPPER/TOP DIAMETER: Custom

OVERALL HEIGHT: Custom

STAVE THICKNESS: 1-9/16"

INTERIOR ROUND CLEARANCE: Dependent on size of column

INTERIOR SQUARE CLEARANCE: Dependent on size of column

ACCEPTABLE TOLERANCE: 1/8"

SHAFT WEIGHT: Dependent on size of column

LOAD-BEARING CAPACITY: Dependent on size of column


PLAN SHAPE A	PLAN SHAPE B	PLAN SHAPE C	PLAN SHAPE D	PLAN SHAPE K	PLAN SHAPE L	PLAN SHAPE S

Full Round	3/4 Corner Round	2/3 Chord Round	Half Round	3/4 Chord Round	Slide-On Round	Split For Reassembly
