HOME > COLUMNS > Design #124 Composite Order (Modern) Wood Column Plain, Tapered Shaft Composite Capital & Ionic (Attic) Base Moulding/Plinth
|
Item Number: ARCHX-PL-TP-A-MC-ATC
To complete your order, call for a freight estimate.
COMPOSITE ORDER (MODERN)
ARCHITECTURAL WOOD COLUMNS
– CUSTOM COLUMN SIZING –
MATERIAL & MANUFACTURING PROCESS
Western Red Cedar, Clear Heart Redwood, pine, poplar, & mahogany
are just a few of the popular wood species utilized for our Architectural
Wood Columns. If you desire another wood species, please inform us,
and it will be our pleasure to accomodate. To ensure that our wood columns
are of the highest quality, we process each order with individualized care
and attention. First, the column's height and diameter are entered into our
computer system which has been programmed to calculate the exact
proportions necessary to produce your beautiful exterior wood columns
and architectural interior wood columns.
COLUMN SHAFT

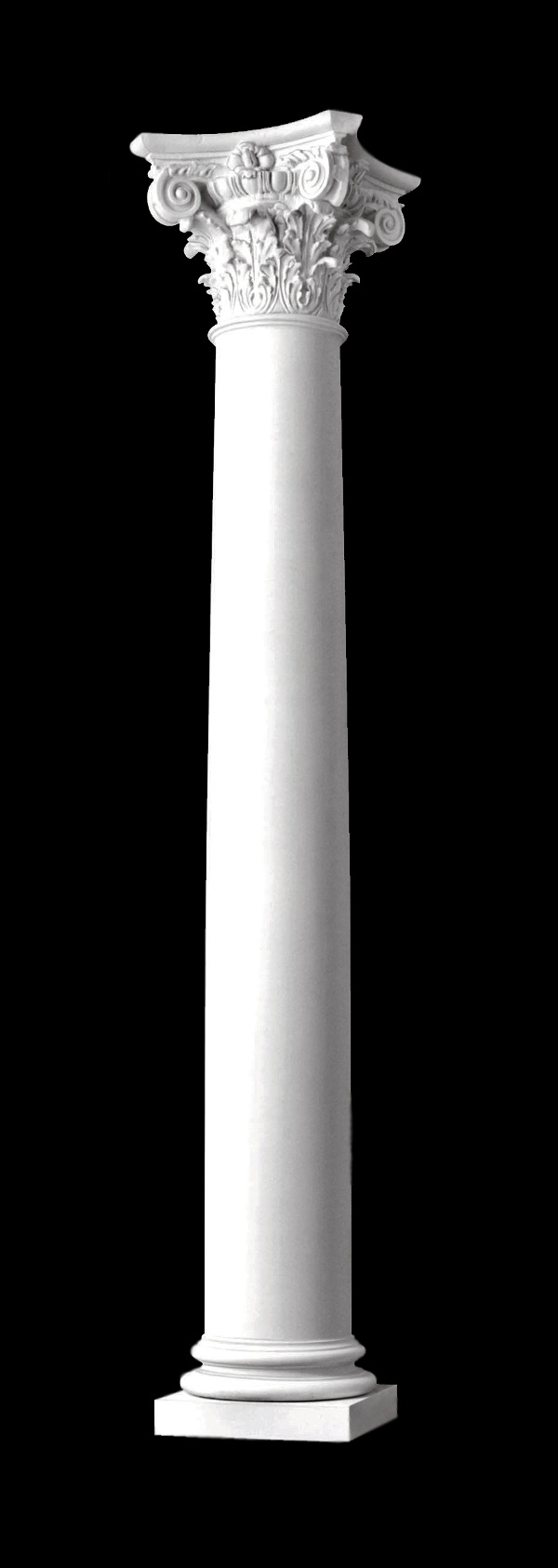

Plain, Tapered column shaft. The Modern Composite wood column
shaft is architecturally correct according to Vignola's classical column
specifications. Select from our wide variety of column plan shapes to
match your architectural style and project specifications. We use
Western Red Cedar, Clear Heart Redwood, pine, poplar, mahogany,
teak or any other wood species desired. Wood materials are available
in both solid board and finger-joint form. Each column is made to
your exact specifications. We recommend using either finger-joint
redwood or cedar for interior columns that will be stained or left
natural with a clear protective finish to display the grain of the wood.
CAPITAL, BASE MOLDING & PLINTH
CAPITAL: Design 124 is characterized by a Modern Composite
capital. Standard materials are polyurethane for the smaller column
sizes and fiberglass for the larger column sizes. Wood capitals are a
vailable for all sizes at an upcharge. We are able to replicate for
historic restoration if you have as much as a quarter of the existing
capital including corner and any side design. Please contact a
Chadsworth Sales Consultant for additional capital materials and
information. BASE MOLDING: Design 124 has an Ionic (Attic)
Base. Base materials follow the same parameters as the capitals.
PLINTH: We offer a variety of Plinth materials, specific to your
column sizes and interior or exterior applications.
|
LOWER/BOTTOM DIAMETER: Custom
UPPER/TOP DIAMETER: Custom
OVERALL HEIGHT: Custom
STAVE THICKNESS: 1-9/16"
INTERIOR ROUND CLEARANCE: Dependent on size of column
INTERIOR SQUARE CLEARANCE: Dependent on size of column
ACCEPTABLE TOLERANCE: 1/8"
SHAFT WEIGHT: Dependent on size of column
LOAD-BEARING CAPACITY: Dependent on size of column
|
|
|
FLEXIBILITY:
• Able to be split & tabbed for reassembly
• Client determines exact overall height
• Shaft will have proper 1/3, 2/3 taper (entasis).
• Other wood species available upon request
(may result in higher cost).
• Assortment of capitals, bases & plinths available
SHIPPING:
RESTOCKING:
• None. All Authentic Replication columns are
made to order, and therefore cannot be returned.
|
| Please contact a Chadsworth Sales Consultant for additional information. 1-800-486-2118 or sales@columns.com |
|
