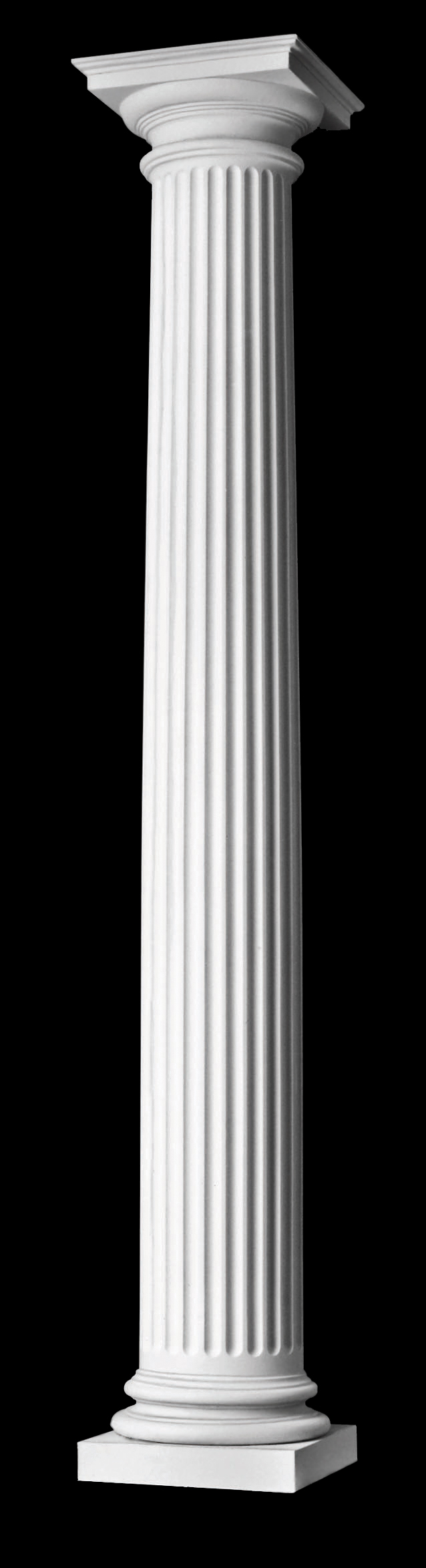

HOME > COLUMNS > Design #109 Doric Order (Roman) Authentic Replication Wood Column Fluted, Tapered Roman Doric Capital & Ionic (Attic) Base Molding/Plinth
|
Item Number: ARCH-FL-TP-A-RD-ATC-WD-2
To complete your order, call for a freight estimate.
DORIC ORDER (ROMAN)
ARCHITECTURAL WOOD COLUMNS
IONIC (ATTIC) BASE
(FLUTED, TAPERED)
DESIGN 109
– ALL SIZES AVAILABLE –
MATERIAL & MANUFACTURING PROCESS
Western Red Cedar, Clear Heart Redwood, pine, poplar, & mahogany
are just a few of the popular wood species utilized for our Architectural
Wood Columns. If you desire another wood species, please inform us,
and it will be our pleasure to accomodate. To ensure that our wood
columns are of the highest quality, we process each order with
individualized care and attention. First, the column's height and
diameter are entered into our computer system which has been
programmed to calculate the exact proportions necessary to produce
your beautiful exterior wood columns and architectural interior
wood columns.
COLUMN SHAFT
Fluted, Tapered column shaft. The Roman Doric column is
architecturally correct according to Vignola's classical column
specifications. The length and placement of fluting can be
customized to achieve various design styles. Fluting may be
either at the top or at the bottom one-third, one-half, or
two-thirds of the column shaft. Chadsworth ensures that each
fluted column shaft is individually tapered to maintain consistency
throughout the column shaft. Doric fluting is a custom option.
We use Western Red Cedar, Clear Heart Redwood, pine, poplar,
mahogany, teak or any other wood species desired. Wood
materials are available in both solid board and finger-joint form.
Each column is made to your exact specifications. We recommend
using either finger-joint redwood or cedar for interior columns that
will be stained or left natural with a clear protective finish to
display the grain of the wood.
CAPITAL, BASE MOLDING & PLINTH
CAPITAL: Includes a Roman Doric capital. Standard materials
are polyurethane for the smaller column sizes and fiberglass for
the larger column sizes. Wood capitals are available for all sizes at
an upcharge. We are able to replicate for historic restoration if you
have as much as a quarter of the existing capital including corner
and any side design. Please contact a Chadsworth Sales Consultant
for additional capital materials and information.
BASE MOLDING: Design 109 consists of an Ionic (Attic) base.
Base materials follow the same parameters as the capitals.
PLINTH: We offer a variety of Plinth materials, specific to your
column sizes and interior or exterior applications.
|
LOWER/BOTTOM DIAMETER: Custom
UPPER/TOP DIAMETER: Custom
OVERALL HEIGHT: Custom
STAVE THICKNESS: 1-9/16"
INTERIOR ROUND CLEARANCE: Dependent on size of column
INTERIOR SQUARE CLEARANCE: Dependent on size of column
ACCEPTABLE TOLERANCE: 1/8"
SHAFT WEIGHT: Dependent on size of column
LOAD-BEARING CAPACITY: Dependent on size of column
|
|
|
FLEXIBILITY:

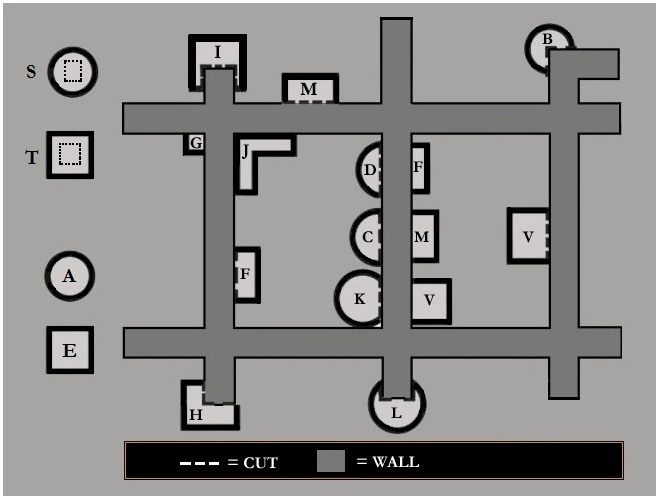

• Able to be split & tabbed for reassembly
• Client determines exact overall height
• Shaft will have proper 1/3, 2/3 taper (entasis).
• Other wood species available upon request
(may result in higher cost).
• Assortment of capitals, bases & plinths available
SHIPPING:
RESTOCKING:
• None. All Authentic Replication columns are
made to order, and therefore cannot be returned.
|
| Please contact a Chadsworth Sales Consultant for additional information. 1-800-486-2118 or sales@columns.com |
|
