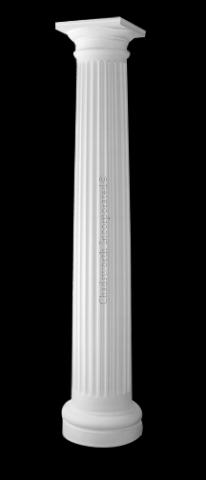

Design #501 RB - Tuscan Order Classic Stone Column Fluted, Tapered Shaft Tuscan Capital & Round Tuscan Base Moulding/Plinth

PRICE: Request a Quote

Item Number: CSX-FL-TP-A-TSC-TSCRND-18

TUSCAN ORDER

[TUSCAN CAPITAL] &
ROUND TUSCAN BASE MOLDING/PLINTH
CLASSIC STONE PRE-FINISHED COLUMNS
TEXTURED / COLORED
(FLUTED, ROUND, TAPERED)

DESIGN 501 RB

MATERIAL AND MANUFACTURING PROCESS: Composed
of polyester resin, marble dust, and pigment matrix in existing
column molds. Custom column molds can be created for unique
column specifications. The following pigments are available:
White, Off-White, Cream, Limestone, Sandstone & Cliffside Gray.

COLUMN SHAFT: Pre-Finished column shaft made of polyester
resin, marble dust, and pigment matrix. The column shaft is
fluted and tapered (bottom third of the column shaft is straight,
with the remaining 2/3 tapering to the neck). Nominal dimensions.
Most column sizes have correct architectural taper. The column
shaft can be cut down to your desired overall height (cut from the
bottom of the column shaft only). Classic astragal (bead) is molded
onto the column shaft.

COLUMN CAPITAL, BASE MOLDING & PLINTH: Tuscan capital,
base molding & round plinth are included. For 8" - 12" bottom
diameters, Style 2 capital is standard, and for column diameters
14" +, Style 1 capital is standard. Capital, base molding & plinth
are made from the same material as the column shaft. Please Note:
The capital & base molding/plinth for this column are designed to
slide around the column shaft. They will not add to the overall
height of the complete column. Please inquire about having this
column cut / split to fit your specific column shapes.

LOWER/BOTTOM DIAMETER: 8-1/16" – 35-3/4"

UPPER/TOP DIAMETER: 6-3/4" – 32"

OVERALL HEIGHT: 8'-0" – 9'-2"
ASTRAGAL (NECK MOLDING): 7/8" – 2-1/2"
WALL THICKNESS: 3/8" – 1"

INTERIOR ROUND CLEARANCE: CALL

INTERIOR SQUARE CLEARANCE: CALL

ACCEPTABLE TOLERANCE: 1/8"

SHAFT WEIGHT: 75 lbs – 1,500 lbs +/-
LOAD-BEARING CAPACITY: 12,000 lbs – 50,000 lbs


PLAN SHAPE A	PLAN SHAPE B	PLAN SHAPE C	PLAN SHAPE D	PLAN SHAPE K	PLAN SHAPE L	PLAN SHAPE S

Full Round	3/4 Corner Round	2/3 Chord Round	Half Round	3/4 Chord Round	Slide-On Round	Split For Reassembly



WHITE	OFF-WHITE	CREAM	LIMESTONE	SANDSTONE	CLIFFSIDE GRAY

Also available in Smooth White (Non Textured)
