HOME > COLUMNS > Design #239 Ionic Order (Roman - Empire) PolyStone® Column Fluted, Tapered Shaft Empire w/ Necking Capital & Ionic (Attic) Base Moulding/Plinth

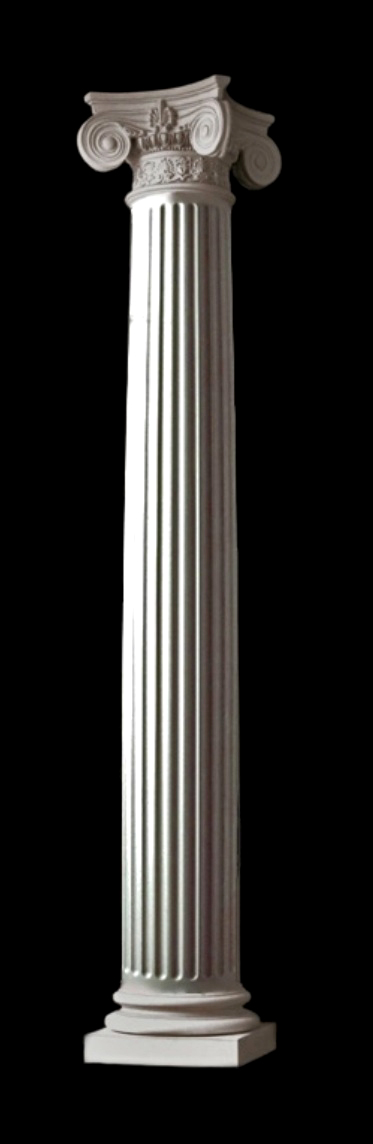

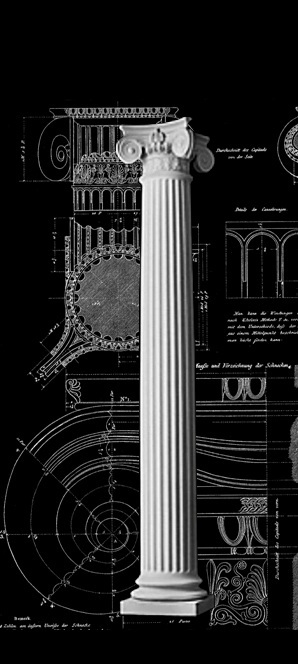

Design #239 Ionic Order (Roman - Empire) PolyStone® Column Fluted, Tapered Shaft Empire w/ Necking Capital & Ionic (Attic) Base Moulding/Plinth
Item Number: PSX-FL-TP-A-EN-ATC-PY-2
IONIC ORDER (ROMAN)
POLYSTONE® COMPOSITE COLUMNS
EMPIRE W/ DECORATIVE NECKING
(FLUTED, ROUND, TAPERED)
IONIC (ATTIC) BASE MOLDING & PLINTH
DESIGN 239
MATERIAL AND MANUFACTURING PROCESS: Composed of
polyester resin, fiberglass, and marble dust trix-spun-cast in
existing column molds. Custom column molds can be created
for unique specifications.
COLUMN SHAFT: PolyStone® column shaft made of polyester
resin, fiberglass, and marble dust. Column shaft is fluted and
tapered (bottom third of the shaft is straight, with the remaining
2/3 tapering to the neck). Molded flutes available for column
diameters (bottom) 6" – 18". Column shaft has Ionic Fluting
with (24) flutes for 8" – 18" column sizes and (16) flutes for
6" column sizes. Column shaft can be cut down to your desired
overall height (cut from the bottom of the column shaft only).
Classic astragal (bead) is molded onto the column shaft.
COLUMN CAPITAL, BASE MOLDING & PLINTH: Empire
with Decorative Necking Capital and Ionic (Attic) Base
Molding / Plinth composed of a polyurethane material, but
may be upgraded to our premium, heavier cast marble material
for an upcharge. Please also note that column components are
designed to slide around the column shaft as decorative sleeves.
They do not add height. See spec sheet for dimensions.
|
LOWER/BOTTOM DIAMETER: 5-5/8" – 24"
UPPER/TOP DIAMETER: 5-1/2" – 20"
OVERALL HEIGHT: Mold Sizes
WALL THICKNESS: 1/4" – 5/8"
INTERIOR ROUND CLEARANCE: 2-1/2" – 17-1/2"
INTERIOR SQUARE CLEARANCE: 2 -7/16" – 17-1/2"
ACCEPTABLE TOLERANCE: 1/8"
SHAFT WEIGHT: 46 lbs – 950 lbs +/-
FIRE RATING: Class A; Type 1
|
|
|
FLEXIBILITY:
• Tabbing of column
• Cutting to overall length available
• Changeable capitals, bases, and plinths
FLUTING:
• Molded flutes available for sizes 6" – 18"
• 6" column size: (16) flutes
• 8" – 18" column sizes: (24) flutes
• Flutes end 10-3/4" from Tuscan base
for trimming to exact height
• Flute width varies depending on diameter
and taper of the column shaft
• Automated flutes are available for adjusted
SHIPPING:• Quick Ship available on some sizes
RESTOCKING:
• Yes, excluding custom and altered products
• Fee will be applied
|
| Please contact a Chadsworth Sales Consultant for additional information. 1-800-486-2118 or sales@columns.com |
|
