Item Number: ARCHX-FL-TP-A-GE-ATC
To complete your order, call for a freight estimate.


IONIC ORDER (GREEK)
GREEK ERECHTHEUM CAPITAL
ARCHITECTURAL WOOD COLUMNS
(FLUTED, TAPERED)
DESIGN 145
CUSTOM COLUMN SIZING




MATERIAL & MANUFACTURING PROCESS
Western Red Cedar, Clear Heart Redwood, pine, poplar, & mahogany a
re just
 a few of the popular wood species utilized for our Architectural
Wood Columns.
  If you desire another wood species, please inform us,
and it will be our
pleasure to accomodate.  To ensure that our wood
columns are of the highest quality, we
 process each order with
individualized care and attention.  First, the column's
height and diameter
are entered into our computer system which has been
 programmed to
calculate the exact proportions necessary to produce your
beautiful
exterior wood columns and architectural interior wood columns.


COLUMN SHAFT
Fluted, Tapered column shaft.  The Greek Erechtheum column shaft is
architecturally correct according to Vignola's classical column specifications.
Select from our wide selection of column design shapes to match your
architectural style and project specifications.  The length and placement of
the fluting can be customized to achieve several column design styles.
Fluting
may be either at the top or bottom one-third, one-half, or two-thirds
of the
column shaft.  We use Western Red Cedar, Clear Heart Redwood,
pine,
poplar, mahogany, teak or any other wood species desired.  Wood
materials
are available in both solid board and finger-joint form. Each
column is made
to your exact specifications.  We recommend using either
finger-joint redwood
or cedar for interior columns that will be stained or l
eft natural with a clear
protective finish to display the grain of the wood.


CAPITAL, BASE MOLDING & PLINTH
CAPITAL:  Design 145 is characterized by a Greek Erechtheum
capital.
Standard materials are polyurethane for the smaller column
sizes and fiberglas
s for the larger column sizes.  Wood capitals are
available for all sizes at an
upcharge. We are able to replicate for
historic restoration if you have as much as a quarter
 of the existing
capital including corner and any side design. Please contact a
Chadsworth Sales Consultant for additional capital materials and
information.
BASE MOLDING:  Design 145 has an Ionic (Attic) Base.  Base
materials
follow the same parameters as the capitals.
P
LINTH:
We offer a variety of Plinth materials, specific to your
column sizes and interior or exterior applications.



LOWER/BOTTOM DIAMETER:  Custom

UPPER/TOP DIAMETER:  Custom

OVERALL HEIGHT:  Custom

STAVE THICKNESS:  1-9/16"

INTERIOR ROUND CLEARANCE:  Dependent on size of column

INTERIOR SQUARE CLEARANCE: Dependent on size of column

ACCEPTABLE TOLERANCE: 1/8"

SHAFT WEIGHT:  Dependent on size of column
LOAD-BEARING CAPACITY:   Dependent on size of column






PLAN SHAPE A PLAN SHAPE B PLAN SHAPE C PLAN SHAPE D PLAN SHAPE K PLAN SHAPE L PLAN SHAPE S
Full Round 3/4 Corner Round
2/3 Chord Round
Half Round 3/4 Chord Round Slide-On Round Split For Reassembly




Architectural Specifications (Coming Soon)

Load-Bearing Capacities (Coming Soon)

Load-Bearing Applications

Interior Clearances (Coming Soon)

CAD (.dwg) Drawings (Coming Soon)

PDF Drawings (Coming Soon)

Installation Instructions

Joining Split Columns

Finishing & Painting Instructions




FLEXIBILITY:
• Able to be split & tabbed for reassembly
• Client determines exact overall height
• Shaft will have proper 1/3, 2/3 taper (entasis).
• Other wood species available upon request
(may result in higher cost).
• Assortment of capitals, bases & plinths available


S
HIPPING:
• Boxing, collaring, and crating available
• Review SHIPPING INSTRUCTIONS


RESTOCKING:
• None.  All Authentic Replication columns are
made to order, and therefore cannot be returned.



 WARRANTY:

Click to review the full warranty


PHOTO GALLERY:
•      www.columnsphoto.com

ADDITIONAL DESIGNS:

• For additional column designs, please
   visit our Columns Design Page



Please contact a Chadsworth Sales Consultant for additional information.  1-800-486-2118 or sales@columns.com

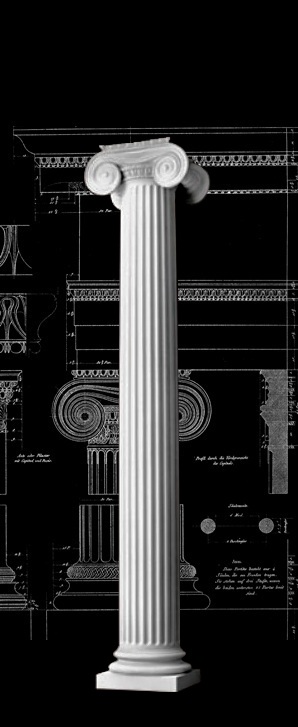

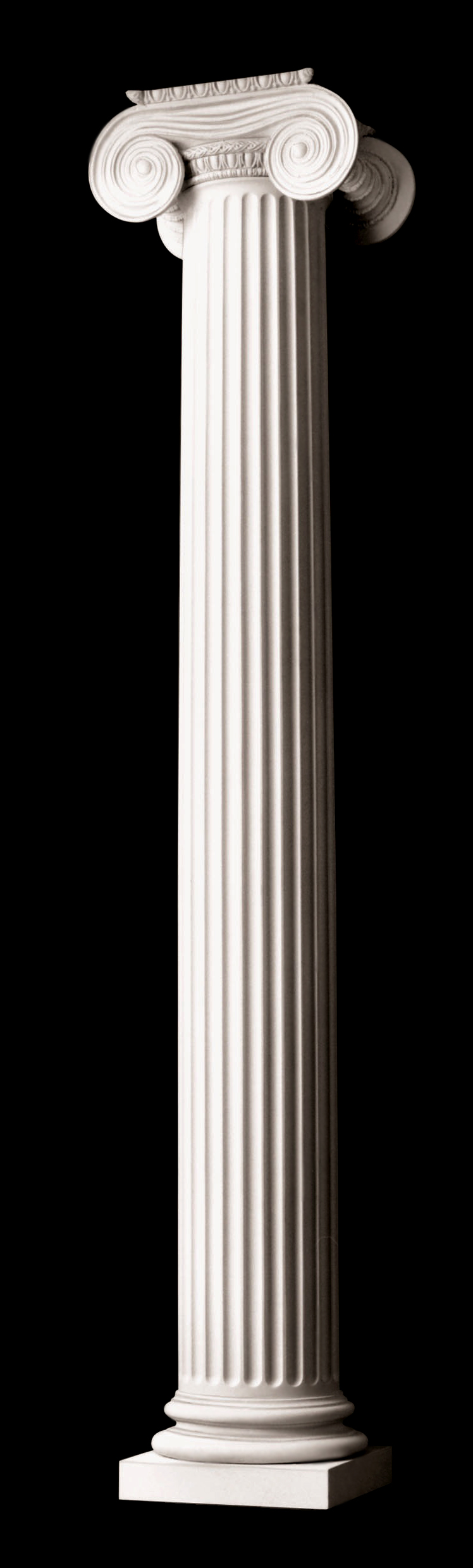

Fluted Greek Erechtheum Wood Column
