Item Number: ARCHX-PL-TP-A-GE-ORN-NEC-ATC
To complete your order, call for a freight estimate.


IONIC ORDER (GREEK)
GREEK ERECHTHEUM CAPITAL W/ ORNATE NECKING
ARCHITECTURAL WOOD COLUMNS
(PLAIN, TAPERED)
DESIGN 148
CUSTOM COLUMN SIZING




MATERIAL & MANUFACTURING PROCESS
Western Red Cedar, Clear Heart Redwood, pine, poplar, & mahogany
are just
 a few of the popular wood species utilized for our Architectural
Wood Columns.
If you desire another wood species, please inform us,
and it will be our pleasure
to accomodate. To ensure that our wood columns
are of the highest quality, we
 process each order with individualized care
and attention. First, the column's
height and diameter are entered into our
computer system which has been
programmed to calculate the exact
proportions necessary to produce your
 beautiful exterior wood columns
and architectural interior wood columns.


COLUMN SHAFT
Plain, Tapered column shaft.  The Greek Erechtheum with Ornate Necking
wood
column shaft is architecturally correct according to Vignola's classical
column
specifications.  Select, also, from our distinct column design shapes
to match
 your interior or exterior architectural specifications.  We use
Western Red Cedar,
Clear Heart Redwood, pine, poplar, mahogany, teak or
any other wood species
desired.  Wood materials are available in both solid
board and finger-joint
form.  Each column is made to your exact specifications.
We recommend using
either finger-joint redwood or cedar for interior columns
that will be stained or left
natural with a clear protective finish to display the
grain of the wood.


CAPITAL, BASE MOLDING & PLINTH
CAPITAL:  Design 148 is characterized by a Greek Erechtheum capital with
composite ornate necking.  Standard materials are polyurethane for the smaller
column sizes and fiberglass for the larger column sizes.  Load-bearing qualities.
Wood capitals are available for all sizes at an upcharge.  We are able to replicate
for historic restoration if you have as much as a quarter of the existing capital
including corner and any side design.  Please contact a Chadsworth Sales
Consultant for additional capital materials and information.
BASE MOLDINGDesign 148 has an Ionic (Attic) Base.  Base materials
follow the same parameters as the capitals.  PLINTH:  We offer a variety of
Plinth materials, specific to your column sizes and interior or exterior applications.



LOWER/BOTTOM DIAMETER:  Custom

UPPER/TOP DIAMETER:  Custom

OVERALL HEIGHT:  Custom

STAVE THICKNESS:  1-9/16"

INTERIOR ROUND CLEARANCE:  Dependent on size of column

INTERIOR SQUARE CLEARANCE: Dependent on size of column

ACCEPTABLE TOLERANCE: 1/8"

SHAFT WEIGHT:  Dependent on size of column
LOAD-BEARING CAPACITY:   Dependent on size of column




PLAN SHAPE A PLAN SHAPE B PLAN SHAPE C PLAN SHAPE D PLAN SHAPE K PLAN SHAPE L PLAN SHAPE S
Full Round 3/4 Corner Round
2/3 Chord Round
Half Round 3/4 Chord Round Slide-On Round Split For Reassembly




Architectural Specifications (Coming Soon)

Load-Bearing Capacities (Coming Soon)

Load-Bearing Applications

Interior Clearances (Coming Soon)

CAD (.dwg) Drawings (Coming Soon)

PDF Drawings (Coming Soon)

Installation Instructions

Joining Split Columns

Finishing & Painting Instructions




FLEXIBILITY:
• Able to be split & tabbed for reassembly
• Client determines exact overall height
• Shaft will have proper 1/3, 2/3 taper (entasis).
• Other wood species available upon request
(may result in higher cost).
• Assortment of capitals, bases & plinths available


S
HIPPING:
• Boxing, collaring, and crating available
• Review SHIPPING INSTRUCTIONS


RESTOCKING:
• None.  All Authentic Replication columns are
made to order, and therefore cannot be returned.



 WARRANTY:

Click to review the full warranty


PHOTO GALLERY:
•      www.columnsphoto.com

ADDITIONAL DESIGNS:

• For additional column designs, please
   visit our Columns Design Page



Please contact a Chadsworth Sales Consultant for additional information.  1-800-486-2118 or sales@columns.com

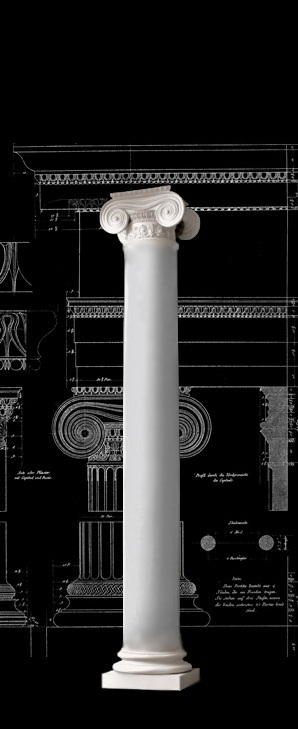

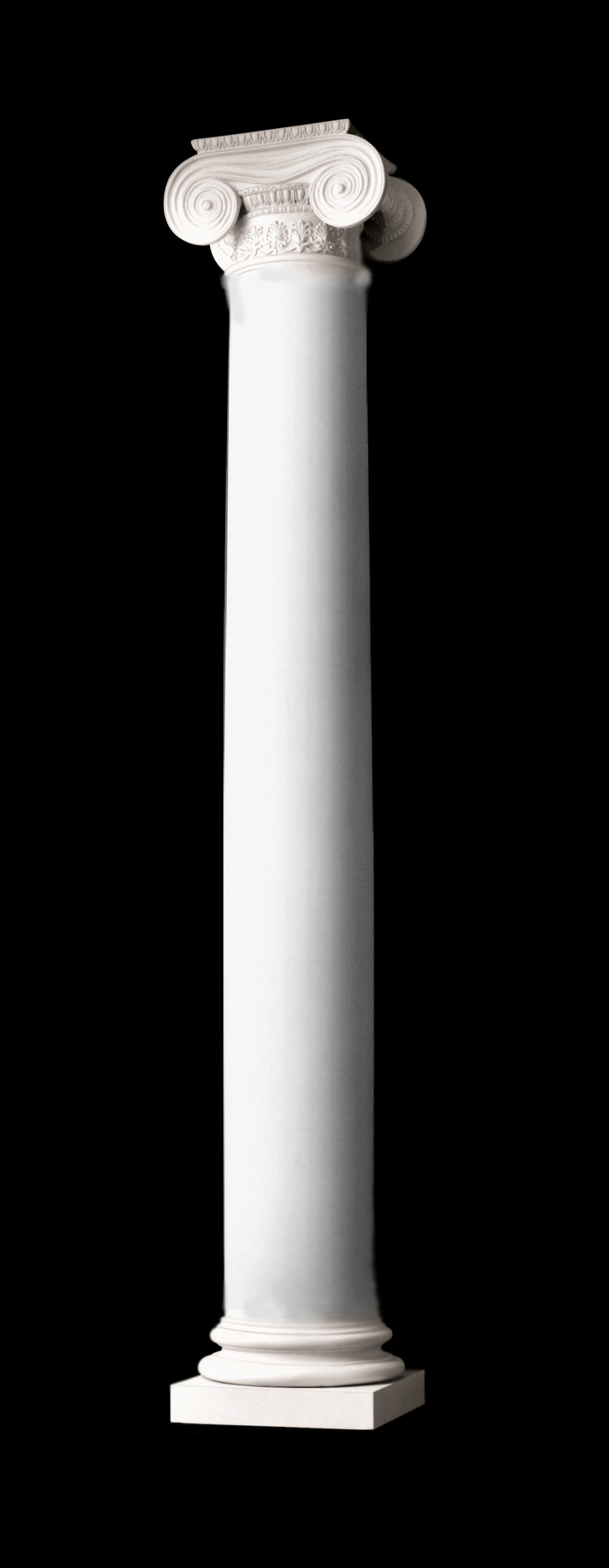

Greek Erechtheum Ornate Necking Column
