Fluted Architectural Wood Columns | Greek Angular Ionic Design

<< Previous in COLUMNS Next in COLUMNS >>

Item Number: ARCHX-FL-TP-A-GAI-ATC

To complete your order, call for a freight estimate.

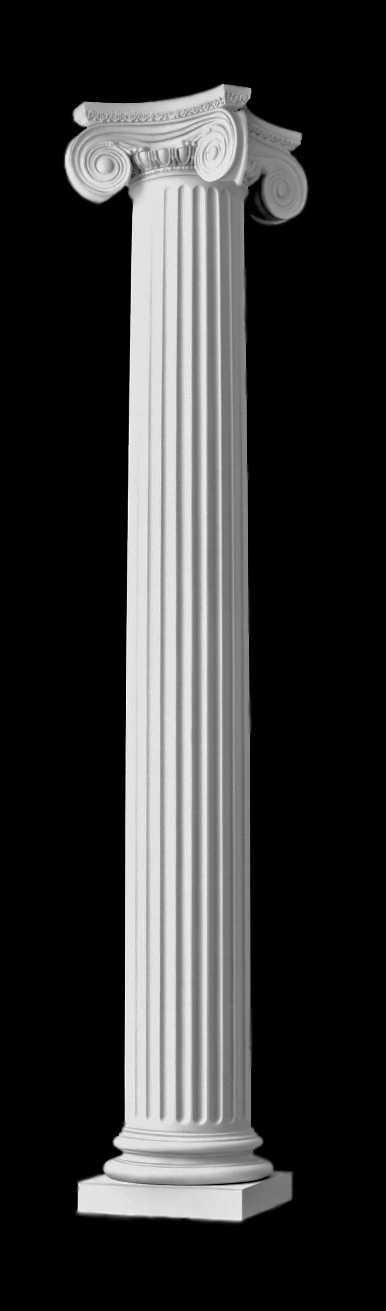

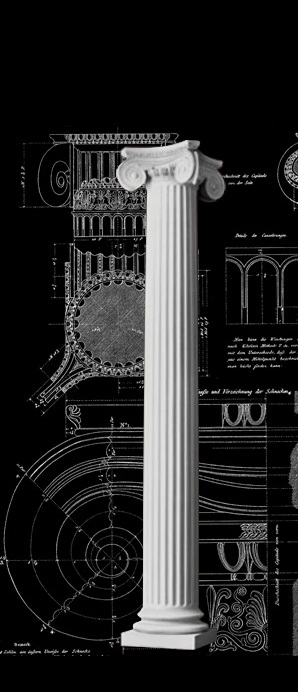

IONIC ORDER (GREEK)

GREEK ANGULAR CAPITAL

ARCHITECTURAL WOOD COLUMNS

(FLUTED, TAPERED)

DESIGN 141

– CUSTOM COLUMN SIZING –

MATERIAL & MANUFACTURING PROCESS

Western Red Cedar, Clear Heart Redwood, pine, poplar, & mahogany
are just a few of the popular wood species utilized for our Architectural
Wood Columns. If you desire another wood species, please inform us,
and it will be our pleasure to accomodate. To ensure that our wood
columns are of the highest quality, we process each order with
individualized care and attention. First, the column's height and
diameter are entered into our computer system which has been

programmed to calculate the exact proportions necessary to produce your

beautiful exterior wood columns and architectural interior wood columns.

COLUMN SHAFT

Fluted, Tapered column shaft. The Greek Angular Ionic column shaft is

architecturally correct according to Vignola's classical column specifications.

Select from our wide selection of column design shapes to match your

architectural style and project specifications. The length and placement

of the fluting can be customized to achieve several column design styles.

Fluting may be either at the top or bottom one-third, one-half, or two-thirds

of the column shaft. We use Western Red Cedar, Clear Heart Redwood,

pine, poplar, mahogany, teak or any other wood species desired. Wood

materials are available in both solid board and finger-joint form. Each

column is made to your exact specifications. We recommend using either

finger-joint redwood or cedar for interior columns that will be stained or
left natural with a clear protective finish to display the grain of the wood.

CAPITAL, BASE MOLDING & PLINTH

CAPITAL: Design 141 is characterized by a Greek Angular Ionic
capital. Standard materials are polyurethane for the smaller column
sizes and fiberglass for the larger column sizes. Wood capitals are
available for all sizes at an upcharge. We are able to replicate for
historic restoration if you have as much as a quarter of the existing
capital including corner and any side design. Please contact a
Chadsworth Sales Consultant for additional capital materials and
information.
BASE MOLDING: Design 141 has an Ionic (Attic) Base.

Base materials follow the same parameters as the capitals.
PLINTH: We offer a variety of Plinth materials, specific to your
column sizes and interior or exterior applications.

LOWER/BOTTOM DIAMETER: Custom

UPPER/TOP DIAMETER: Custom

OVERALL HEIGHT: Custom

STAVE THICKNESS: 1-9/16"

INTERIOR ROUND CLEARANCE: Dependent on size of column

INTERIOR SQUARE CLEARANCE: Dependent on size of column

ACCEPTABLE TOLERANCE: 1/8"

SHAFT WEIGHT: Dependent on size of column

LOAD-BEARING CAPACITY: Dependent on size of column


PLAN SHAPE A	PLAN SHAPE B	PLAN SHAPE C	PLAN SHAPE D	PLAN SHAPE K	PLAN SHAPE L	PLAN SHAPE S

Full Round	3/4 Corner Round	2/3 Chord Round	Half Round	3/4 Chord Round	Slide-On Round	Split For Reassembly
