HOME > COLUMNS > Design #129 Ionic Order (Roman) Authentic Replication Wood Column Fluted, Tapered Roman Ionic Capital & Ionic (Attic) Base Moulding/Plinth
|
Item Number: ARCHX-FL-TP-A-RI-ATC
To complete your order, call for a freight estimate.
IONIC ORDER (ROMAN)
ARCHITECTURAL WOOD COLUMNS
– CUSTOM COLUMN SIZING –
MATERIAL & MANUFACTURING PROCESS
Western Red Cedar, Clear Heart Redwood, pine, poplar, & mahogany
are just a few of the popular wood species utilized for our Architectural
Wood Columns. If you desire another wood species, please inform us,
and it will be our pleasure to accomodate. To ensure that our wood
columns are of the highest quality, we process each order with
individualized care and attention. First, the column's height and diameter
are entered into our computer system which has been programmed to
calculate the exact proportions necessary to produce your beautiful
exterior wood columns and architectural interior wood columns.
COLUMN SHAFT

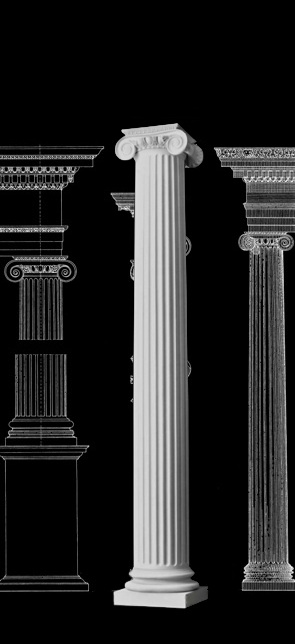

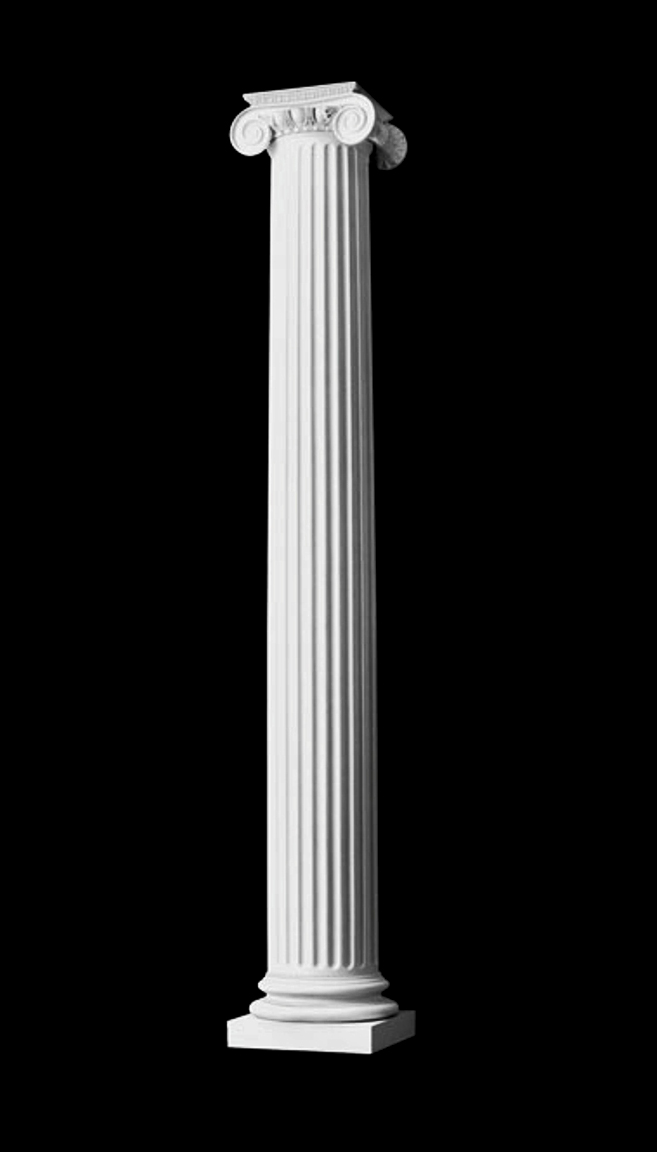

Fluted, Tapered column shaft. The Roman Ionic wood column shaft is
architecturally correct according to Vignola's classical column specifications.
Select, also, from our distinct column design shapes to match your interior
or exterior architectural specifications. The length and placement of the
fluting can be altered to achieve many design styles. Fluting may be either
the top or bottom one-third, one-half, or two-thirds of the column shaft.
We use Western Red Cedar, Clear Heart Redwood, pine, poplar, mahogany,
teak or any other wood species desired. Wood materials are available in both
solid board and finger-joint form. Each column is made to your exact
specifications. We recommend using either finger-joint redwood or cedar for
interior columns that will be stained or left natural with a clear protective
finish to display the grain of the wood.
CAPITAL, BASE MOLDING & PLINTH
CAPITAL: Design 129 is characterized by a Roman Ionic capital.
Standard materials are polyurethane for the smaller column sizes and
fiberglass for the larger column sizes. Wood capitals are available for
all sizes at an upcharge. We are able to replicate for historic restoration
if you have as much as a quarter of the existing capital including corner
and any side design. Please contact a Chadsworth Sales Consultant for
additional capital materials and information.
BASE MOLDING: Design 129 has an Ionic (Attic) Base. Base
materials follow the same parameters as the capitals.
PLINTH: We offer a variety of Plinth materials, specific to your
column sizes and interior or exterior applications.
|
LOWER/BOTTOM DIAMETER: Custom
UPPER/TOP DIAMETER: Custom
OVERALL HEIGHT: Custom
STAVE THICKNESS: 1-9/16"
INTERIOR ROUND CLEARANCE: Dependent on size of column
INTERIOR SQUARE CLEARANCE: Dependent on size of column
ACCEPTABLE TOLERANCE: 1/8"
SHAFT WEIGHT: Dependent on size of column
LOAD-BEARING CAPACITY: Dependent on size of column
|
|
|
FLEXIBILITY:
• Able to be split & tabbed for reassembly
• Client determines exact overall height
• Shaft will have proper 1/3, 2/3 taper (entasis).
• Other wood species available upon request
(may result in higher cost).
• Assortment of capitals, bases & plinths available
SHIPPING:
RESTOCKING:
• None. All Authentic Replication columns are
made to order, and therefore cannot be returned.
|
| Please contact a Chadsworth Sales Consultant for additional information. 1-800-486-2118 or sales@columns.com |
|
