Item Number: ARCHX-PL-TP-A-RI-ATC
To complete your order, call for a freight estimate.

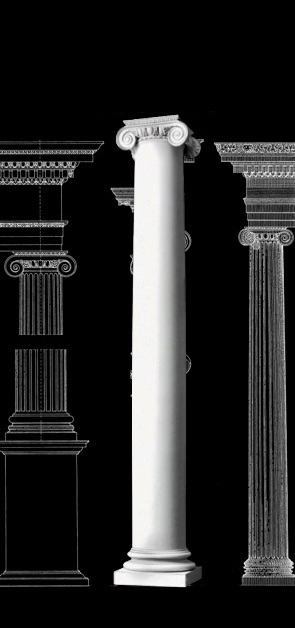

IONIC ORDER (ROMAN)
ARCHITECTURAL WOOD COLUMNS
(PLAIN, TAPERED)
DESIGN 128

CUSTOM COLUMN SIZING




MATERIAL & MANUFACTURING PROCESS
Western Red Cedar, Clear Heart Redwood, pine, poplar, & mahogany
are just
a few of the popular wood species utilized for our Architectural
Wood Columns.
 If you desire another wood species, please inform us,
and it will be our pleasure
 to accomodate. To ensure that our wood
columns are of the highest quality, we
 process each order with
individualized care and attention. First, the column's
height and
diameter are entered into our computer system which has been
programmed to calculate the exact proportions necessary to produce your
beautiful exterior wood columns and architectural interior wood columns.


COLUMN SHAFT

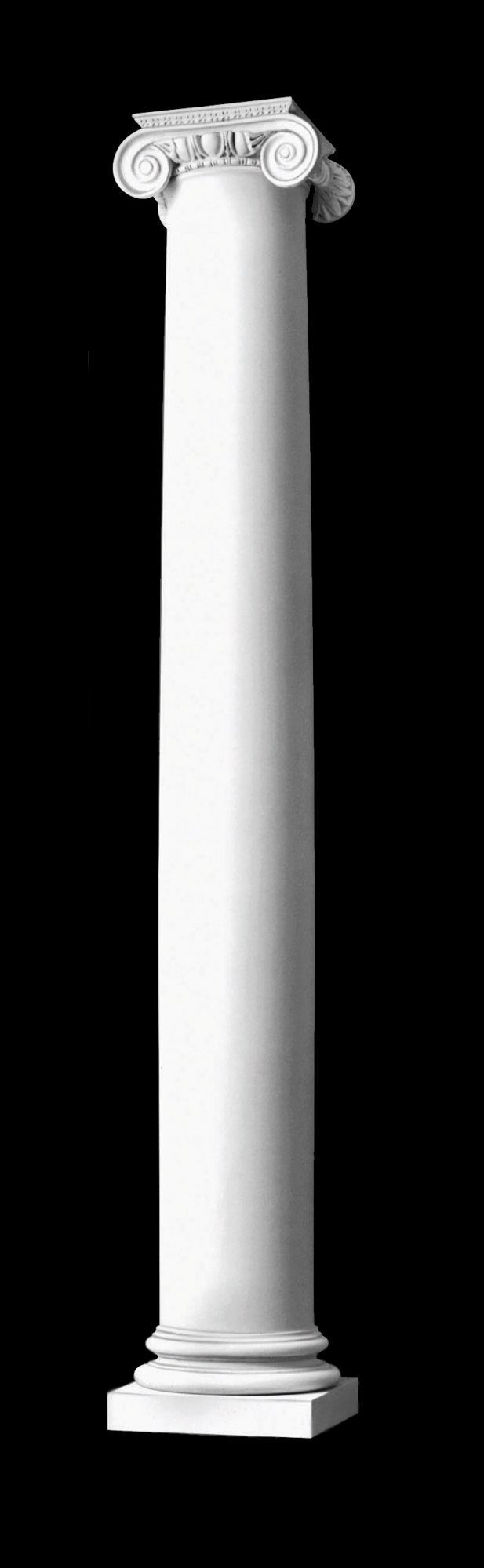

Plain, Tapered column shaft.  The Roman Ionic wood column shaft is
architecturally correct according to Vignola's classical column specifications.
 Chadsworth also offers several column shape design options to select
from - for both your interior and exterior column projects.  We use Western
Red Cedar, Clear Heart Redwood, pine, poplar, mahogany, teak or any other
wood species desired. Wood materials are available in both solid board and
finger-joint form. Each column is made to your exact specifications.  We
recommend using either finger-joint redwood or cedar for interior columns
that will be stained or left natural with a clear protective finish
to display the grain of the wood.


CAPITAL, BASE MOLDING & PLINTH
CAPITAL:   Design 128 is characterized by a Roman Ionic capital.
Standard
materials are polyurethane for the smaller column sizes and
fiberglass for the
larger column sizes.  Wood capitals are available for
all sizes at an upcharge.
We are able to replicate for historic restoration
if you have as much as a quarter
of the existing capital including corner
and any side design. Please contact a
Chadsworth Sales Consultant for
additional capital materials and information.
BASE MOLDING:   Design 128 has an Ionic (Attic) Base.  Base
materials
 follow the same parameters as the capitals.
PLINTH:  We offer a variety of Plinth materials, specific to your
column sizes and interior or exterior applications.



LOWER/BOTTOM DIAMETER:  Custom

UPPER/TOP DIAMETER:  Custom

OVERALL HEIGHT:  Custom

STAVE THICKNESS:  1-9/16"

INTERIOR ROUND CLEARANCE:  Dependent on size of column

INTERIOR SQUARE CLEARANCE: Dependent on size of column

ACCEPTABLE TOLERANCE: 1/8"

SHAFT WEIGHT:  Dependent on size of column
LOAD-BEARING CAPACITY:   Dependent on size of column






PLAN SHAPE A PLAN SHAPE B PLAN SHAPE C PLAN SHAPE D PLAN SHAPE K PLAN SHAPE L PLAN SHAPE S
Full Round 3/4 Corner Round
2/3 Chord Round
Half Round 3/4 Chord Round Slide-On Round Split For Reassembly




Architectural Specifications (Coming Soon)

Load-Bearing Capacities (Coming Soon)

Load-Bearing Applications

Interior Clearances (Coming Soon)

CAD (.dwg) Drawings (Coming Soon)

PDF Drawings (Coming Soon)

Installation Instructions

Joining Split Columns

Finishing & Painting Instructions




FLEXIBILITY:
• Able to be split & tabbed for reassembly
• Client determines exact overall height
• Shaft will have proper 1/3, 2/3 taper (entasis).
• Other wood species available upon request
(may result in higher cost).
• Assortment of capitals, bases & plinths available


S
HIPPING:
• Boxing, collaring, and crating available
• Review SHIPPING INSTRUCTIONS


RESTOCKING:
• None.  All Authentic Replication columns are
made to order, and therefore cannot be returned.



 WARRANTY:

Click to review the full warranty


PHOTO GALLERY:
•      www.columnsphoto.com

ADDITIONAL DESIGNS:

• For additional column designs, please
   visit our Columns Design Page



Please contact a Chadsworth Sales Consultant for additional information.  1-800-486-2118 or sales@columns.com
