Item Number: ARCHX-PL-TP-A-EM-ATC

To complete your order, call for a freight estimate.

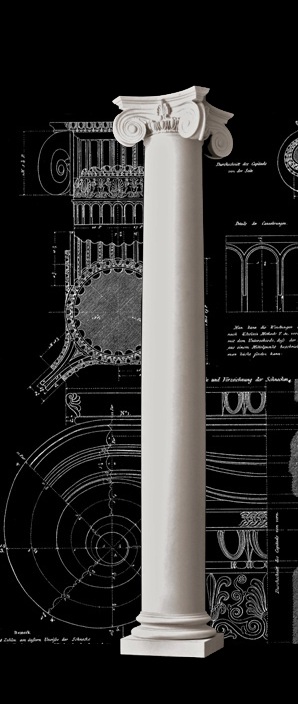

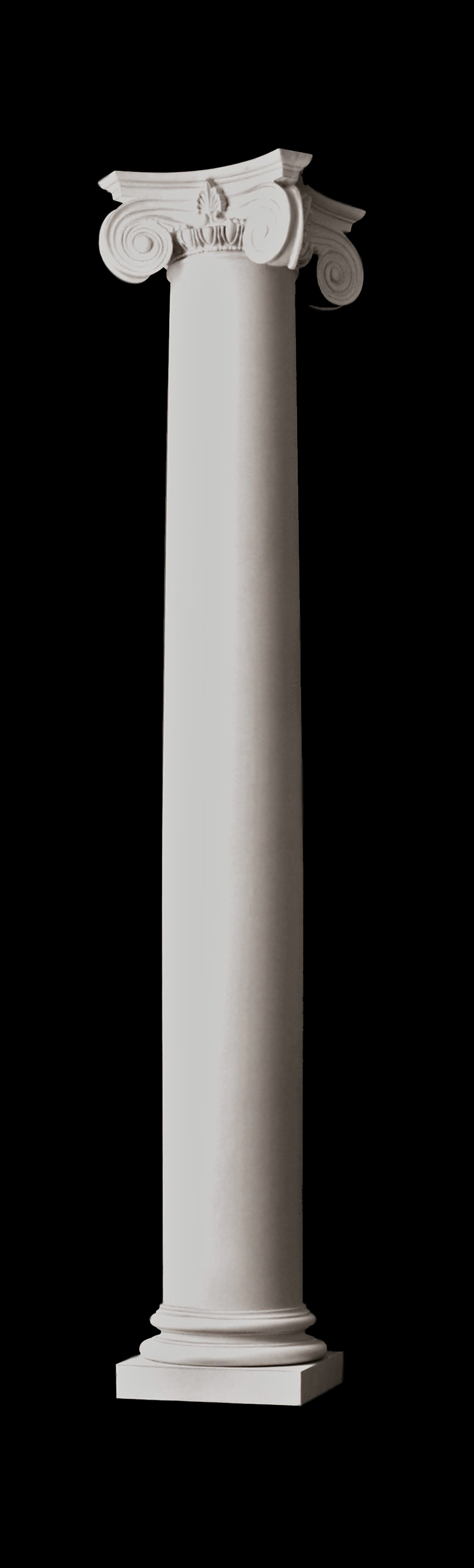

IONIC ORDER (ROMAN)

EMPIRE CAPITAL

ARCHITECTURAL WOOD COLUMNS

(PLAIN, TAPERED)

DESIGN 136

– CUSTOM COLUMN SIZING –

MATERIAL & MANUFACTURING PROCESS

Western Red Cedar, Clear Heart Redwood, pine, poplar, & mahogany
are just a few of the popular wood species utilized for our Architectural
Wood Columns. If you desire another wood species, please inform us,
and it will be our pleasure to accomodate. To ensure that our wood
columns are of the highest quality, we process each order with
individualized care and attention. First, the column's height and diameter
are entered into our computer system which has been programmed to
calculate the exact proportions necessary to produce your beautiful
exterior wood columns and architectural interior wood columns.

COLUMN SHAFT

Plain, Tapered column shaft. The Empire's wood column shaft is
architecturally correct according to Vignola's classical column specifications.

Select, also, from our distinct column design shapes to match your interior

or exterior architectural specifications. We use Western Red Cedar, Clear
Heart Redwood, pine, poplar, mahogany, teak or any other wood species
desired. Wood materials are available in both solid board and finger-joint
form. Each column is made to your exact specifications. We recommend
using either finger-joint redwood or cedar for interior columns that will be
stained or left natural with a clear protective finish to display the grain of t
he wood.

CAPITAL, BASE MOLDING & PLINTH

CAPITAL: Design 136 is characterized by an Empire capital design.

Standard materials are polyurethane for the smaller column sizes and

fiberglass for the larger column sizes. Load-bearing qualities. Wood capitals

are available for all sizes at an upcharge. We are able to replicate for historic

restoration if you have as much as a quarter of the existing capital including

corner and any side design. Please contact a Chadsworth Sales Consultant
for additional capital materials and information.
BASE MOLDING: Design 136 has an Ionic (Attic) Base. Base materials
follow the same parameters as the capitals.

PLINTH: We offer a variety of Plinth materials, specific to your column

sizes and interior or exterior applications.

LOWER/BOTTOM DIAMETER: Custom

UPPER/TOP DIAMETER: Custom

OVERALL HEIGHT: Custom

STAVE THICKNESS: 1-9/16"

INTERIOR ROUND CLEARANCE: Dependent on size of column

INTERIOR SQUARE CLEARANCE: Dependent on size of column

ACCEPTABLE TOLERANCE: 1/8"

SHAFT WEIGHT: Dependent on size of column

LOAD-BEARING CAPACITY: Dependent on size of column


PLAN SHAPE A	PLAN SHAPE B	PLAN SHAPE C	PLAN SHAPE D	PLAN SHAPE K	PLAN SHAPE L	PLAN SHAPE S

Full Round	3/4 Corner Round	2/3 Chord Round	Half Round	3/4 Chord Round	Slide-On Round	Split For Reassembly

•		Architectural Specifications (Coming Soon)
•		Load-Bearing Capacities (Coming Soon)
•		Load-Bearing Applications
•		Interior Clearances (Coming Soon)
•		CAD (.dwg) Drawings (Coming Soon)
•		PDF Drawings (Coming Soon)
•		Installation Instructions
•		Joining Split Columns
•		Finishing & Painting Instructions
