Item Number: ARCH-PL-TP-A-RIN/ATC-PY-2
To complete your order, call for a freight estimate.


IONIC ORDER (ROMAN)
ARCHITECTURAL WOOD COLUMNS
INCLUDES COMPOSITE PLAIN NECKING
(PLAIN, TAPERED)
DESIGN 130

CUSTOM COLUMN SIZING





MATERIAL & MANUFACTURING PROCESS
Western Red Cedar, Clear Heart Redwood, pine, poplar, & mahogany
are just a few of the popular wood species utilized for our Architectural
Wood Columns. I
f you desire another wood species, please inform us,
and it will be our pleasure to accomodate. To ensure that our wood
columns are of the highest quality, we process each order with
individualized care and attention. First, the column's height and
diameter are entered into our computer system which has been
programmed to calculate the exact proportions necessary to produce
your beautiful exterior wood columns and architectural interior wood
columns.


COLUMN SHAFT
Plain, Tapered column shaft.  The Roman Ionic with Necking wood
column shaft is architecturally correct according to Vignola's classical
column specifications.  Select, also, from our distinct column design
shapes to match your interior or exterior architectural specifications.
We use Western Red Cedar, Clear Heart Redwood, pine, poplar,
mahogany, teak or any other wood species desired.  Wood materials
are available in both solid board and finger-joint form. Each column
is made to your exact specifications.  We recommend using either
finger-joint redwood or cedar for interior columns that will be stained or
left natural with a clear protective finish to display the grain of the wood.


CAPITAL, BASE MOLDING & PLINTH
CAPITAL:  Design 130 is characterized by a Roman Ionic capital with
composite plain necking.  Standard materials are polyurethane for the
smaller column sizes and fiberglass for the larger column sizes.
Load-bearing qualities.  Wood capitals are available for all sizes at an
upcharge.  We are able to replicate for historic restoration if you have as
much as a quarter of the existing capital including corner and any side
design.  Please contact a Chadsworth Sales Consultant for additional
capital materials and information.
BASE MOLDING:  Design 130 has
an Ionic (Attic) Base.  Base materials follow the same parameters as the
capitals.
PLINTH:  We offer a variety of Plinth materials, specific to
your column sizes and interior or exterior applications.



LOWER/BOTTOM DIAMETER:  Custom

UPPER/TOP DIAMETER:  Custom

OVERALL HEIGHT:  Custom

STAVE THICKNESS:  1-9/16"

INTERIOR ROUND CLEARANCE:  Dependent on size of column

INTERIOR SQUARE CLEARANCE: Dependent on size of column

ACCEPTABLE TOLERANCE: 1/8"

SHAFT WEIGHT:  Dependent on size of column
LOAD-BEARING CAPACITY:   Dependent on size of column



PLAN SHAPE A PLAN SHAPE B PLAN SHAPE C PLAN SHAPE D PLAN SHAPE K PLAN SHAPE L PLAN SHAPE S
Full Round 3/4 Corner Round
2/3 Chord Round
Half Round 3/4 Chord Round Slide-On Round Split For Reassembly




Architectural Specifications (Coming Soon)

Load-Bearing Capacities (Coming Soon)

Load-Bearing Applications

Interior Clearances (Coming Soon)

CAD (.dwg) Drawings (Coming Soon)

PDF Drawings (Coming Soon)

Installation Instructions

Joining Split Columns

Finishing & Painting Instructions




FLEXIBILITY:
• Able to be split & tabbed for reassembly
• Client determines exact overall height
• Shaft will have proper 1/3, 2/3 taper (entasis).
• Other wood species available upon request
(may result in higher cost).
• Assortment of capitals, bases & plinths available


S
HIPPING:
• Boxing, collaring, and crating available
• Review SHIPPING INSTRUCTIONS


RESTOCKING:
• None.  All Authentic Replication columns are
made to order, and therefore cannot be returned.



 WARRANTY:

Click to review the full warranty


PHOTO GALLERY:
•      www.columnsphoto.com

ADDITIONAL DESIGNS:

• For additional column designs, please
   visit our Columns Design Page



Please contact a Chadsworth Sales Consultant for additional information.  1-800-486-2118 or sales@columns.com

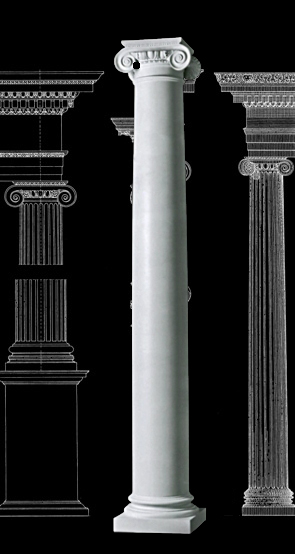

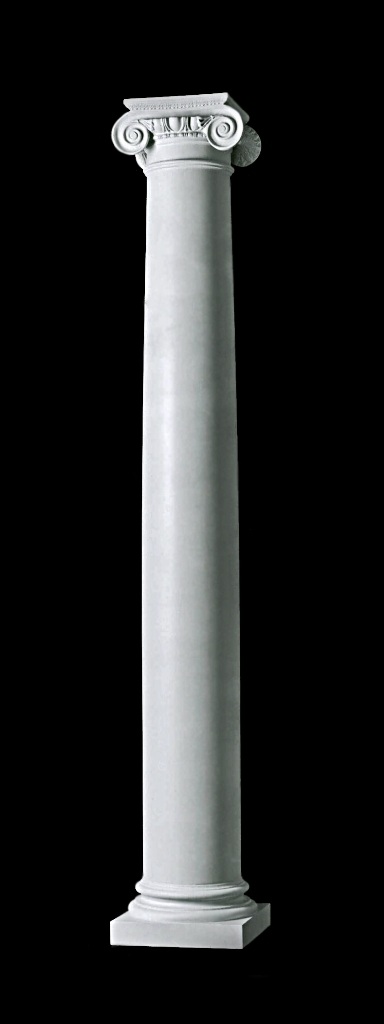

Roman Ionic With Necking Column
