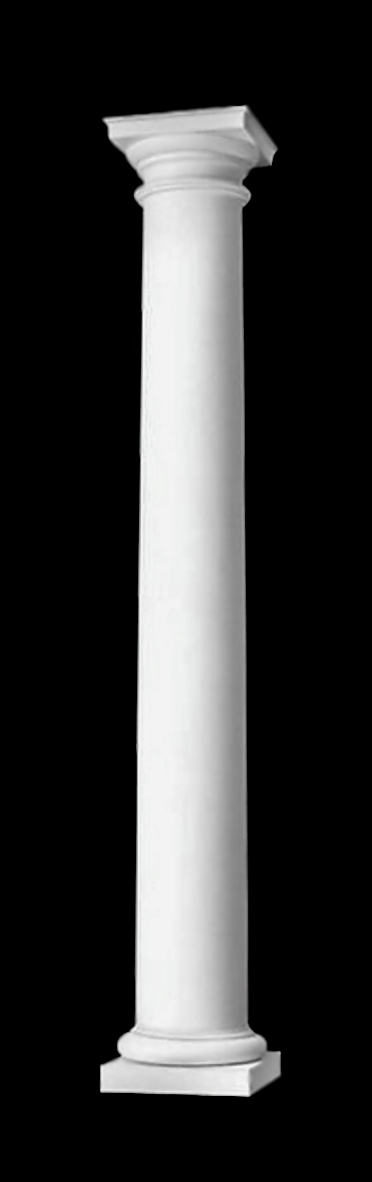

Design #200 - Tuscan Order - PolyStone® Column - Plain, Round, Tapered Shaft - Tuscan Capital & Base Molding/Plinth


ratingratingratingratingrating
PRICE: Request a Quote
Item Number: PSX-PL-TP-A-TSC-CM-2

TUSCAN ORDER
POLYSTONE® COMPOSITE COLUMNS
(PLAIN, ROUND, TAPERED)
DESIGN 200




MATERIAL AND MANUFACTURING PROCESSComposed
of polyester resin, fiberglass, and marble dust matrix-spun-cast
in
existing column molds. Custom column molds can be
created
for unique specifications.

COLUMN SHAFTPolyStone® column shaft made of polyester
resin, fiberglass,
 and marble dust. Column shaft is plain/smooth
and tapered (bottom third of the column shaft is straight, with the
remaining 2/3 tapering to the neck).
Column shaft can be cut
down to your desired overall height (cut from the bottom of the
column shaft only).  Classic astragal (bead) is molded onto the
column shaft.

COLUMN CAPITAL, BASE MOLDING & PLINTHTuscan capital,
base molding & plinth are included. For 6" - 12"
bottom diameters,
a polyurethane capital and base is
standard.  Value engineered
injection molded plastic and
premium cast marble alternatives
are available.  For column diameters 14" + a polyurethane
capital & base is standard, but can be upgraded to cast marble.
Please also note that the column components are designed to slide
around the column shaft as decorative sleeves – they don't add height.



L
OWER/BOTTOM DIAMETER
:
   5-5/8" – 23-5/8"

UPPER/TOP DIAMETER:   5-1/2" – 20"

OVERALL HEIGHT:  5'-0" – 24'-0"
ASTRAGAL (NECK MOLDING):   1" – 2"
W
ALL THICKNESS:  1/4" – 3/8"

INTERIOR ROUND CLEARANCE:  2-1/2" – 17-1/2"

INTERIOR SQUARE CLEARANCE:  2-7/16" – 12-9/16"

ACCEPTABLE TOLERANCE:  1/8"

SHAFT WEIGHT:  38 lbs – 800 lbs +/-
LOAD-BEARING CAPACITY:  8,000 lbs – 25,000 lbs

FIRE RATING:   Class A; Type 1










PLAN SHAPE A PLAN SHAPE B PLAN SHAPE C PLAN SHAPE D PLAN SHAPE K PLAN SHAPE L PLAN SHAPE S
Full Round 3/4 Corner Round
2/3 Chord Round
Half Round 3/4 Chord Round Slide-On Round Split For Reassembly

CLICK HERE TO VIEW SQUARE COLUMN SHAPES





FLEXIBILITY:
• Tabbing of column
• Cutting to overall length available
• Changeable capitals, bases, and plinths


S
HIPPING:
• Quick Ship available on some sizes
• Boxing, collaring, and crating available
• Review SHIPPING INSTRUCTIONS


RESTOCKING:
• Yes, excluding custom and altered products
• Fee will be applied



 WARRANTY:
• For the life of the original installation

Click to review the full warranty


PHOTO GALLERY:
•      www.columnsphoto.com

ADDITIONAL DESIGNS:

• For additional column designs, please
   visit our Columns Design Page



Please contact a Chadsworth Sales Consultant for additional information.  1-800-486-2118 or sales@columns.com
