CHADSWORTH COLUMNS
POLYSTONE® COMPOSITE SPINDLES
FREDERICKSBURG DESIGN
RESIDENTIAL APPLICATIONS

Chadsworth's Fredericksburg Residential Architectural Spindle
signifies true southern charm. Whether for residential balconies,
porches, decks, patios, or stairways – the Fredericksburg system
instantly becomes an elegant addition for your outdoors.
Made from our award-winning PolyStone® material, which
is a durable fiberglass-reinforced polymer composite material.
Each spindle is hand crafted and hand sanded to reveal a
final product that is beautifully smooth with no visible seams.
The Fredericksburg spindle design can be directly installed to
virtually any surface and structure: i.e. stone, wood, brick, and
concrete. Our balustrade systems can also be attached to columns.
Review our Fredericksburg residential spindle specifications
below to find the exact sizes along with the appropriate
balustrade components for your project. You will also find
additional downloads, such as: A photo instructed, step-by-step
installation guide, finishing tips, .PDF drawings, spindle
application information, product warranty, and much more!
Feel free to call a Chadsworth Sales Consultant today, or
simply Request a Quote - above - for your balustrade pricing!
1-800-486-2118
|
|
|
 |
|
FREDERICKSBURG
DESIGN
|
4" SPHERE¹
CODE SPACING
|
COMMON SPACING²
[NON-CODE]
|
|
Rail System Height³
|
36-3/8"
|
36-3/8"
|
|
Spacing
|
2-5/8"
|
3-1/8"
|
|
Spacing On Center
|
6"
|
6-1/2"
|
|
Spindles Needed per Linear Foot [LF]
|
2
|
1.8
|
|
Weight LF Spindle, Rail & Hardware
|
45 lbs
|
42 lbs
|
|

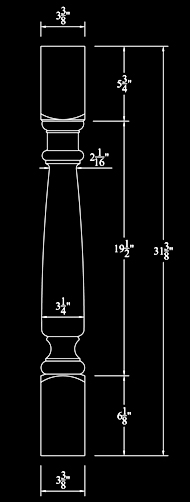

Weight Spindle
|
15.9 lbs
|
15.9 lbs
|
|

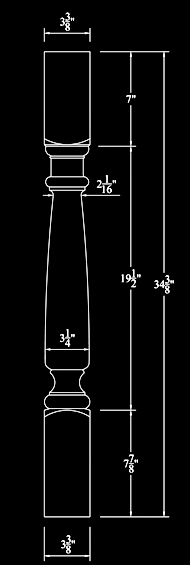

Weight Extended Spindle
|
16.5 lbs
|
16.5 lbs
|
|
Weight LF Top Rail
|
6 lbs
|
6 lbs
|
|
Weight LF Bottom Rail
|
7 lbs
|
7 lbs
|
|
Customers are responsible for local code adherence.
¹ 4" Sphere Code spacing requires that a 4" ball cannot fit through any spacing between balusters.
² Common [non-code] spacing can be used in non-access applications or when spacing codes are not required.
³ Building codes for residential installations of balusters are typically specified at 36" in height.
|
|
|
|
 |
