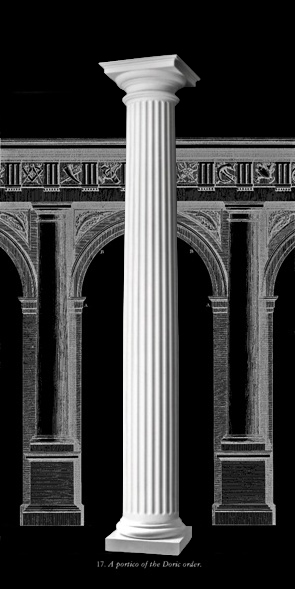

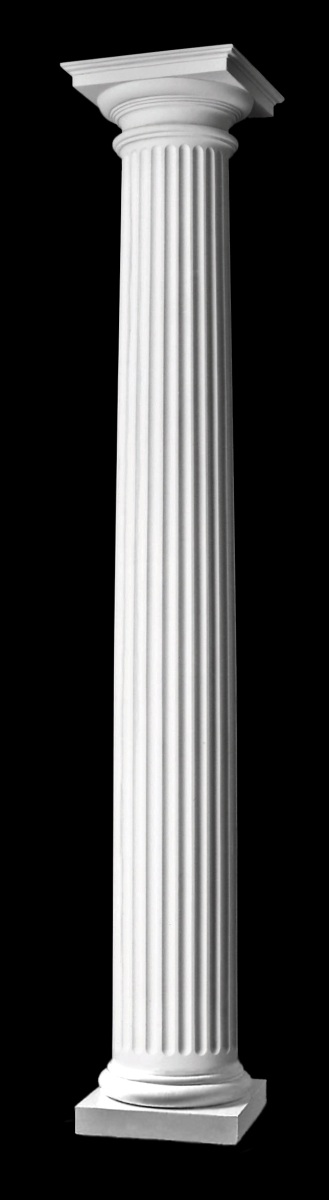

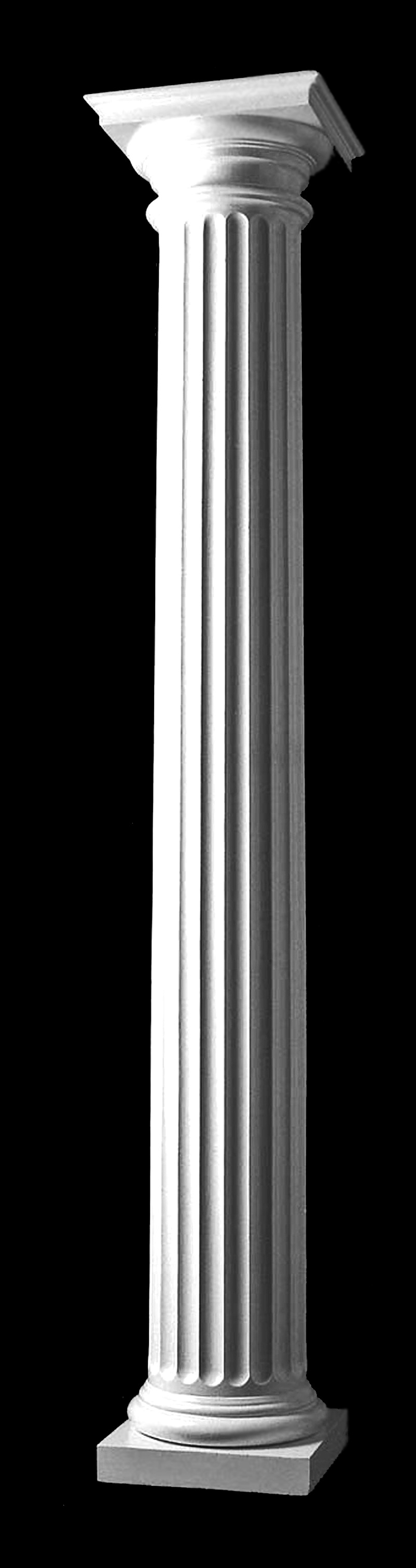

Design #205 Doric Order (Roman) PolyStone® Column Fluted, Round, Tapered Shaft Roman Doric Capital & Base Moulding/Plinth

MATERIAL AND MANUFACTURING PROCESS:  Composed of

polyester resin, fiberglass, and marble dust trix-spun-cast in

existing column molds.  Custom column molds can be created

for unique specifications.

COLUMN SHAFT:  PolyStone® column shaft made of polyester

resin, fiberglass, and marble dust.  Column shaft is fluted and

tapered (bottom third of the shaft is straight, with the remaining

 2/3 tapering to the neck).  Fluting may either be Ionic fluting

or Doric fluting.  Molded flutes available for column diameters

(bottom) 6" – 18".  Column shaft has Ionic Fluting with (24) flutes

for 8" – 18" column sizes and (16) flutes for 6" column sizes.

Column shaft can be cut down to your desired overall height

(cut from the bottom of the column shaft only).

Classic astragal (bead) is molded onto the column shaft.

COLUMN CAPITAL, BASE MOLDING & PLINTH:  Roman Doric

capital and Roman Doric Base Molding / Plinth composed of

a polyurethane material, but may be upgraded to our premium,

heavier cast marble material for an upcharge.  Please also note

that column components are designed to slide around the column

shaft as decorative sleeves – they do not add height.





LOWER/BOTTOM DIAMETER:  6" – 18" UPPER/TOP DIAMETER:  Mold Sizes OVERALL HEIGHT:  8' – 18' WALL THICKNESS:  1/4"  –  5/8" INTERIOR ROUND CLEARANCE: 2-1/2"  –  13" INTERIOR SQUARE CLEARANCE:  2 -7/16" – 9-3/8" ACCEPTABLE TOLERANCE:  1/8" SHAFT WEIGHT:  53 lbs  –  491 lbs +/- FIRE RATING:  Class A; Type 1





PLAN SHAPE A	PLAN SHAPE B	PLAN SHAPE C	PLAN SHAPE D	PLAN SHAPE K	PLAN SHAPE L	PLAN SHAPE S
Full Round	3/4 Corner Round	2/3 Chord Round	Half Round	3/4 Chord Round	Slide-On Round	Split For Reassembly
CLICK HERE TO VIEW SQUARE TAPERED COLUMN SHAPES





• Architectural Specifications • Load-Bearing Capacities • Load-Bearing Applications • Interior Clearances • CAD (.dwg & .dxf) Drawings (Coming Soon) • PDF Drawings (Coming Soon) • Installation Instructions • Automated Flutes Info • Joining Split Columns • Finishing & Painting Instructions

FLEXIBILITY: • Tabbing of column • Cutting to overall length available • Changeable capitals, bases, and plinths FLUTING: • Molded flutes available for sizes 6" – 18" • 6" column size: (16) flutes • 8" – 18" column sizes: (24) flutes • Flutes end 10-3/4" from Tuscan base   for trimming to exact height • Flute width varies depending on diameter   and taper of the column shaft • Automated flutes are available for adjusted   flute lengths upon request (Read More) SHIPPING: • Quick Ship available on some sizes • Boxing, collaring, and crating available • Review SHIPPING INSTRUCTIONS RESTOCKING: • Yes, excluding custom and altered products • Fee will be applied

WARRANTY: • For the life of the original installation • Click to review the full warranty PHOTO GALLERY: •      www.columnsphoto.com ADDITIONAL DESIGNS: • For additional column designs, please    visit our Columns Design Page



Please contact a Chadsworth Sales Consultant for additional information.  1-800-486-2118 or sales@columns.com
