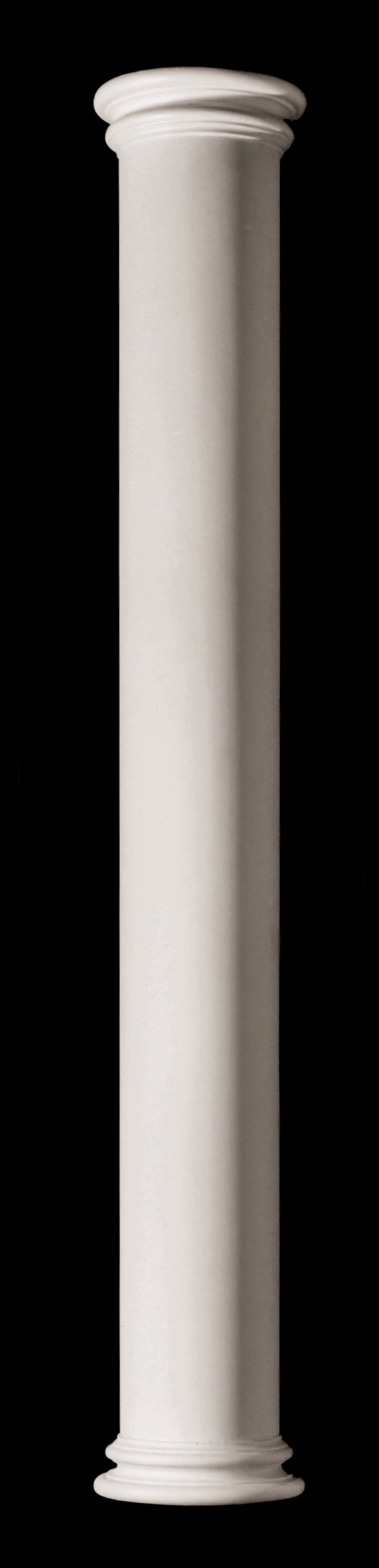

Design #280 - Art Deco PolyStone® Column - Plain, Non-Tapered Shaft - Mirror-image Art Deco Capital & Base Molding


PRICE: Request a Quote
Item Number: PSX-PL-NT-A-ATC-PY-2

ART DECO
POLYSTONE® COMPOSITE COLUMNS
(PLAIN, ROUND, NON-TAPERED)
DESIGN 280



MATERIAL AND MANUFACTURING PROCESS: Composed of
polyester resin, fiberglass, and marble dust trix-spun-cast in
existing column molds.  Custom column molds can be created
for unique specifications.

COLUMN SHAFT:  PolyStone® column shaft made of polyester
resin, fiberglass, and marble dust.  Column shaft is plain/smooth
and non-tapered.  Column is Paint Grade.  Column shaft can be
trimmed down to your desired overall height (cut from the bottom
of the column shaft only).  Column shaft does not have an astragal
(bead) molding.
COLUMN CAPITAL, BASE MOLDING & PLINTH:  Art Deco
Capital and Base Molding are a "mirror image."  Our Art Deco
column does not have an Abacus (top, flat portion of capital)
or a Plinth (bottom, flat portion of base).  Composed of a
polyurethane material, but may be upgraded to our premium,
heavier cast marble material for an upcharge.  Please also note
that column components are designed to slide around the
column shaft as decorative sleeves – they do not add height.
See spec sheet for dimensions.





LOWER/BOTTOM DIAMETER7-5/8" – 17-5/8"

UPPER/TOP DIAMETER:  7-5/8" – 17-5/8"

OVERALL HEIGHT:  8' – 20'

WALL THICKNESS:  1/4"

INTERIOR ROUND CLEARANCE:  5-1/4" – 14-1/2"

INTERIOR SQUARE CLEARANCE:  3-11/16" – 9-1/2"

ACCEPTABLE TOLERANCE: 1/8"

SHAFT WEIGHT: 61 lbs  600 lbs +/-

FIRE RATING: Class A; Type 1







PLAN SHAPE A PLAN SHAPE B PLAN SHAPE C PLAN SHAPE D PLAN SHAPE K PLAN SHAPE L PLAN SHAPE S
Full Round 3/4 Corner Round
2/3 Chord Round
Half Round 3/4 Chord Round Slide-On Round Split For Reassembly

CLICK HERE TO VIEW SQUARE COLUMN SHAPES





FLEXIBILITY:
• Tabbing of column
• Cutting to overall length available
• Changeable capitals, bases, and plinths


S
HIPPING:
• Quick Ship available on some sizes
• Boxing, collaring, and crating available
• Review SHIPPING INSTRUCTIONS


RESTOCKING:
• Yes, excluding custom and altered products
• Fee will be applied



 WARRANTY:
• For the life of the original installation

Click to review the full warranty


PHOTO GALLERY:
•      www.columnsphoto.com

ADDITIONAL DESIGNS:

• For additional column designs, please
   visit our Columns Design Page



Please contact a Chadsworth Sales Consultant for additional information.  1-800-486-2118 or sales@columns.com
