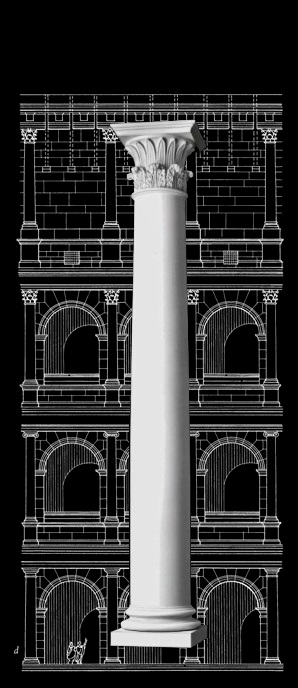

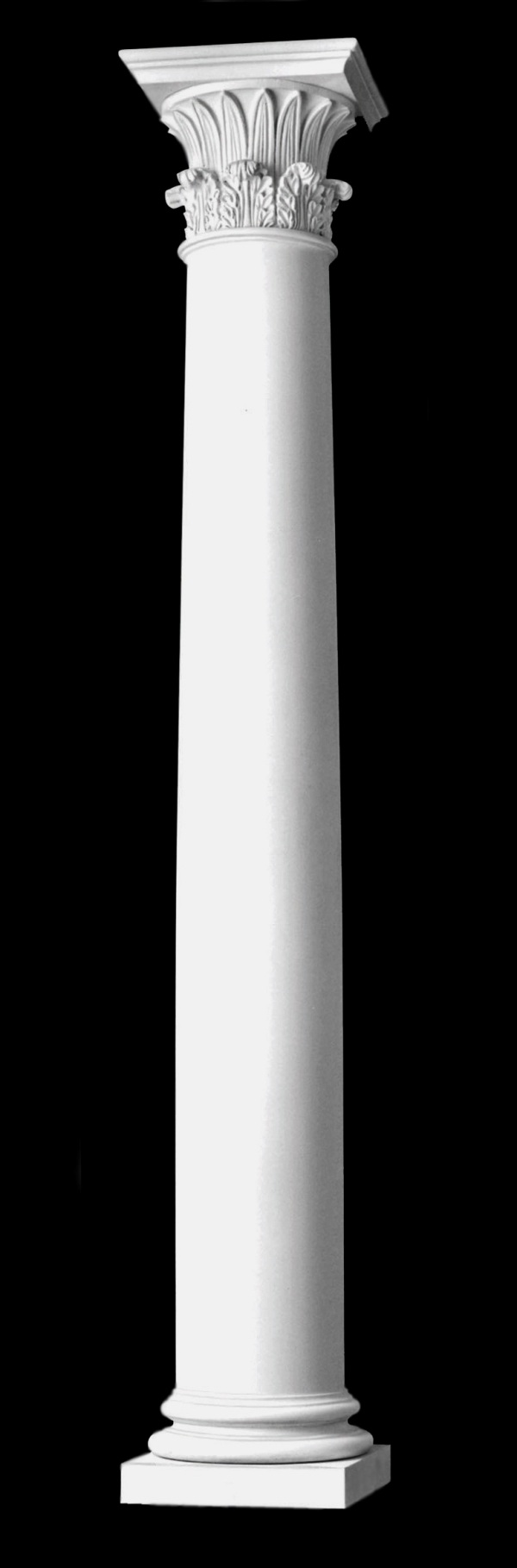

Design #216 - Corinthian Order (Greek) - PolyStone® Column - Plain, Round, Tapered - Temple of Winds Capital & Ionic (Attic) Base Molding/Plinth
Item Number: PSX-PL-TP-A-GC-ATC-CM-2
CORINTHIAN ORDER (GREEK)
POLYSTONE® COMPOSITE COLUMNS
TOWER OF THE WINDS
(PLAIN, ROUND, TAPERED)
IONIC (ATTIC) BASE MOLDING & PLINTH
DESIGN 216
MATERIAL AND MANUFACTURING PROCESS: Composed of
polyester resin, fiberglass, and marble dust trix-spun-cast in
existing column molds. Custom column molds can be created
for unique specifications.
COLUMN SHAFT: PolyStone® column shaft made of polyester
resin, fiberglass, and marble dust. Column shaft is plain/smooth
and tapered (bottom third of the shaft is straight, with the remaining
2/3 tapering to the neck). Column shaft can be cut down to your
desired overall height (cut from the bottom of the column shaft
only). Classic astragal (bead) is molded onto the column shaft.
COLUMN CAPITAL, BASE MOLDING & PLINTH: Greek
Corinthian (Tower of the Winds) capital and Ionic (Attic)
Base Molding / Plinth composed of a polyurethane material,
but may be upgraded to our premium, heavier cast marble
material for an upcharge. Please also note that column
components are designed to slide around the column shaft as
decorative sleeves – they do not add height. See spec sheet
for dimensions.
LOWER/BOTTOM DIAMETER: 5-5/8" – 22"
UPPER/TOP DIAMETER: 5-1/2" – 18-1/2"
OVERALL HEIGHT: Mold Sizes
WALL THICKNESS: 1/4" – 5/8"
INTERIOR ROUND CLEARANCE: 2-1/2" – 17-1/4"
INTERIOR SQUARE CLEARANCE: 2-7/16" – 17-1/2"
ACCEPTABLE TOLERANCE: 1/8"
SHAFT WEIGHT: 46 lbs - 950 lbs +/-
FIRE RATING: Class A; Type 1
|
|
FLEXIBILITY:
• Tabbing of column
• Cutting to overall length available
• Changeable capitals, bases, and plinths
SHIPPING:
• Quick Ship available on some sizes
RESTOCKING:
• Yes, excluding custom and altered products
• Fee will be applied
|
Please contact a Chadsworth Sales Consultant for additional information. 1-800-486-2118 or sales@columns.com |
|
