*COLUMN SIZE ACTUAL WIDTH PLINTH WIDTH BASE MOLD HEIGHT PLINTH HEIGHT TOTAL HEIGHT   A B C D (C & D) 6" 6" 9-1/8" 1-7/8" 1-7/16" 3-5/16" 8" 8" 11-1/8" 2-3/8" 1-7/8" 4-1/4" 10" 10" 13-1/16" 3-1/16" 2-3/8" 5-7/16" 12" 12" 16-5/8" 3-1/4" 2-13/16" 6-1/16" 14" 14" 19-3/8" 3-15/16" 3-5/8" 7-9/16" 16" 16" 22-1/8" 4-9/16" 3-7/8" 8-7/16" * Column Size refers to the bottom width of the column shaft.

PLAN SHAPE | E	PLAN SHAPE | F	PLAN SHAPE | H	PLAN SHAPE | T
(FULL SQUARE)	(HALF SQUARE)	(3/4 CORNER SQUARE)	(SQUARE - SPLIT FOR REASSEMBLY)
* FOR USE WITH A COMPOSITE COLUMN

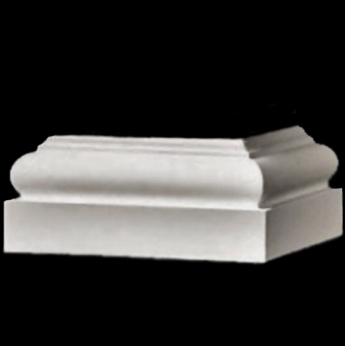

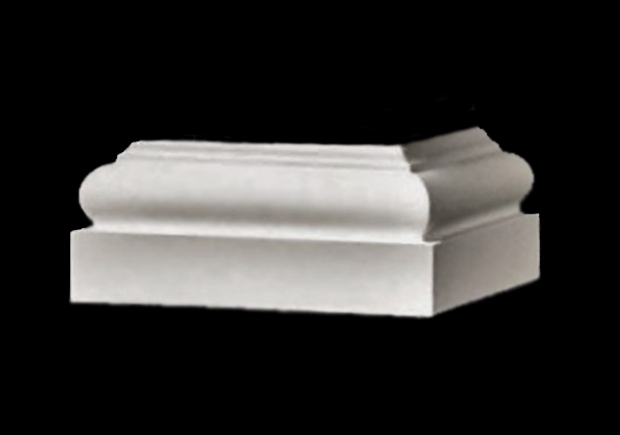

Chadsworth offers Load-Bearing Aluminum Plinths for your structural wood columns. The plinth sits underneath your existing base molding (rounded portion of the base), and it will add to the overall height.

Typically, on historic wood columns, the first components to deteriorate are the base molding and plinth. This is due to the lack of cylindrical airflow up and down the wood column shaft; therefore, over time - moisture is absorbed by the column shaft as well as the column components, resulting in both rot and decay.

To prevent this, Chadsworth offers aluminum plinths that are designed to accommodate the specific size of your column - small or large.

These plinths are paint-grade.

For more information, please contact a Chadsworth Sales Consultant at 1-800-486-2118 | sales@columns.com

PRODUCT FEATURES

Load-Bearing

Designed to sit under base molding for a structural wood column

Facilitates proper airflow for column shaft

Helps protect column from moisture absorption

Paint-Grade

Available in several sizes

Made in the United States of America
