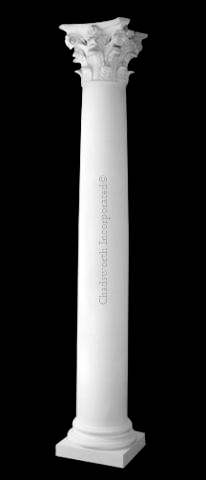

Design #534 - Corinthian Order (Roman) Classic Stone Column Plain, Tapered Shaft Roman Corinthian Capital & Ionic (Attic) Base/Plinth

PRICE: Request a Quote

Item Number: CSX-PL-TP-A-RC-ATC-18

CORINTHIAN ORDER (ROMAN)

CLASSIC STONE PRE-FINISHED COLUMNS
TEXTURED / COLORED
(PLAIN, ROUND, TAPERED)

DESIGN 534

MATERIAL AND MANUFACTURING PROCESS: Composed
of polyester resin, marble dust, and pigment matrix in existing
column molds. Custom column molds can be created for unique
column specifications. The following pigments are available:
White, Off-White, Cream, Limestone, Sandstone & Cliffside Gray.

COLUMN SHAFT: Pre-Finished column shaft made of polyester
resin, marble dust, and pigment matrix. The column shaft is
plain and tapered (bottom third of the column shaft is straight,
with the remaining 2/3 tapering to the neck). Column shaft can
be cut down to your desired overall height (cut from the bottom
of the column shaft only). Classic astragal (bead) is molded
onto the column shaft.

COLUMN CAPITAL, BASE MOLDING & PLINTH: Roman Corinthian
capital design, composed of durable & weather resistant Classic Stone
(pre-finished) material. Decorative capitals for tapered columns 6"
through 16" come with an extended neck; decorative capitals for tapered
columns above 16" come with an embedded L-bracket that lines up with
embedded L-brackets in the column shaft. Consists of an Ionic (Attic)
base molding & plinth, made from the same material as the column
shaft. Please inquire about having this column cut / split to fit your
specific column shapes.

LOWER/BOTTOM DIAMETER: 5-1/2" – 42"

UPPER/TOP DIAMETER: 4-3/4" – 36-5/8"

OVERALL HEIGHT: 8'-0" – 30'-0"
ASTRAGAL (NECK MOLDING): 3/4" – 3"
WALL THICKNESS: 3/8" – 1-1/4"

INTERIOR ROUND CLEARANCE: 3-1/2" – 32-1/8"

INTERIOR SQUARE CLEARANCE: 2-3/8" – 22-5/8"

ACCEPTABLE TOLERANCE: 1/8"

SHAFT WEIGHT: 38 lbs – 3,400 lbs +/-
LOAD-BEARING CAPACITY: 9,000 lbs – 50,000 lbs


PLAN SHAPE A	PLAN SHAPE B	PLAN SHAPE C	PLAN SHAPE D	PLAN SHAPE K	PLAN SHAPE L	PLAN SHAPE S

Full Round	3/4 Corner Round	2/3 Chord Round	Half Round	3/4 Chord Round	Slide-On Round	Split For Reassembly



WHITE	OFF-WHITE	CREAM	LIMESTONE	SANDSTONE	CLIFFSIDE GRAY

Also available in Smooth White (Non Textured)
