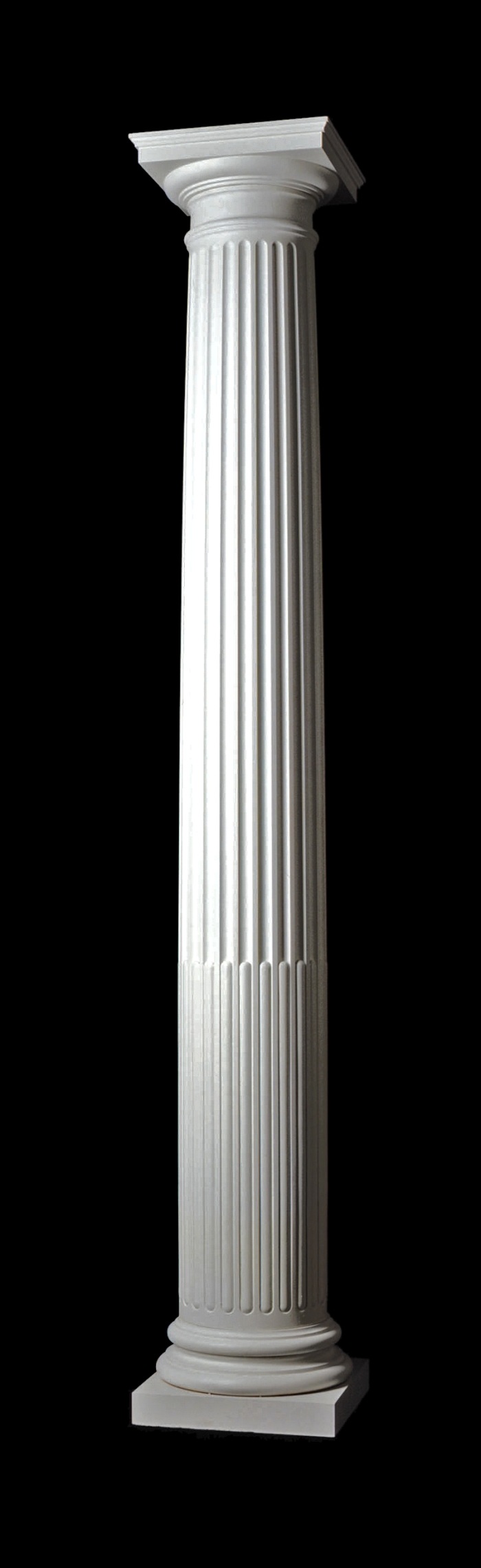

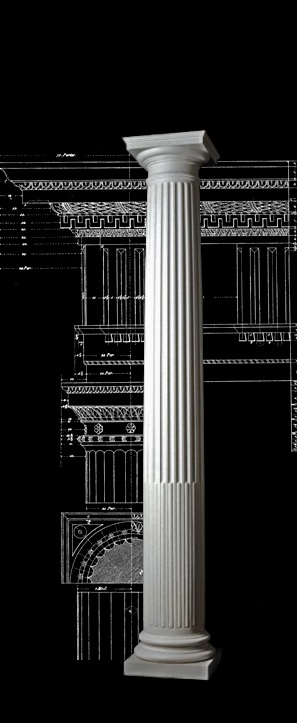

HOME > COLUMNS > Design #109CBL Doric Order (Roman) Wood Column Fluted (Cabled), Tapered Shaft Roman Doric Capital & Ionic (Attic) Base Moulding/Plinth
|
Item Number: ARCH-FL-CBLTP-A-RD-WD-22
To complete your order, call for a freight estimate.
DORIC ORDER (ROMAN)
ARCHITECTURAL WOOD COLUMNS
IONIC (ATTIC) BASE
(CABLED FLUTING, TAPERED)
DESIGN 109CBL
– ALL SIZES AVAILABLE –
MATERIAL & MANUFACTURING PROCESS
Western Red Cedar, Clear Heart Redwood, pine, poplar, & mahogany
are just a few of the popular wood species utilized for our Architectural
Wood Columns. If you desire another wood species, please inform us,
and it will be our pleasure to accomodate. To ensure that our wood
columns are of the highest quality, we process each order with
individualized care and attention. First, the column's height and
diameter are entered into our computer system which has been
programmed to calculate the exact proportions necessary to produce
your beautiful exterior wood columns and architectural
interior wood columns.
COLUMN SHAFT
Fluted, Tapered column shaft. This Roman Doric column is
architecturally correct according to Vignola's classical column
specifications. The column shaft consists of cabled fluting, which
is where the lower part of the column is partially filled with a curved
detail. Our Cabled Columns offer a new and distinct twist to the
fluted column. We use Western Red Cedar, Clear Heart Redwood,
pine, poplar, mahogany, teak or any other wood species desired.
Wood materials are available in both solid board and finger-joint
form. Each column is made to your exact specifications. We
recommend using either finger-joint redwood or cedar for interior
columns that will be stained or left natural with a clear protective
finish to display the grain of the wood.
CAPITAL, BASE MOLDING & PLINTH
CAPITAL: Includes a Roman Doric capital. Standard materials
are polyurethane for the smaller column sizes and fiberglass for the
larger column sizes. Wood capitals are available for all sizes at an
upcharge. We are able to replicate for historic restoration if you
have as much as a quarter of the existing capital including corner
and any side design. Please contact a Chadsworth Sales Consultant
for additional capital materials and information.
BASE MOLDING: Design 109CBL consists of an Ionic (Attic)
base. Base materials follow the same parameters as the capitals.
PLINTH: We offer a variety of Plinth materials, specific to your
column sizes and interior or exterior applications.
|
LOWER/BOTTOM DIAMETER: Custom
UPPER/TOP DIAMETER: Custom
OVERALL HEIGHT: Custom
STAVE THICKNESS: 1-9/16"
INTERIOR ROUND CLEARANCE: Dependent on size of column
INTERIOR SQUARE CLEARANCE: Dependent on size of column
ACCEPTABLE TOLERANCE: 1/8"
SHAFT WEIGHT: Dependent on size of column
LOAD-BEARING CAPACITY: Dependent on size of column
|
|
|
FLEXIBILITY:
• Able to be split & tabbed for reassembly
• Client determines exact overall height
• Shaft will have proper 1/3, 2/3 taper (entasis).
• Other wood species available upon request
(may result in higher cost).
• Assortment of capitals, bases & plinths available
SHIPPING:
RESTOCKING:
• None. All Authentic Replication columns are
made to order, and therefore cannot be returned.
|
| Please contact a Chadsworth Sales Consultant for additional information. 1-800-486-2118 or sales@columns.com |
|
