Item Number: ARCHX-ROPE-NT-A-RD-ATC-WD-22
To complete your order, call for a freight estimate.


DORIC ORDER (ROMAN)
ARCHITECTURAL WOOD COLUMNS

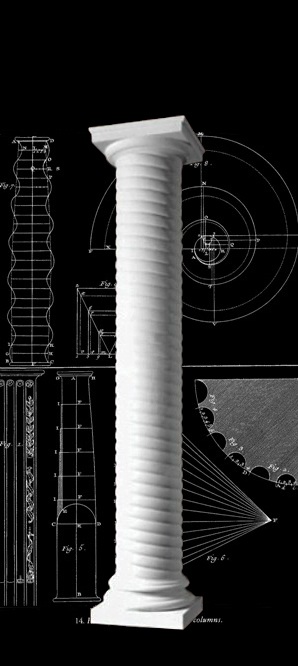

ROPE TWIST COLUMN DESIGN
(ROPE, NON-TAPERED)
DESIGN 190

CUSTOM COLUMN SIZING





MATERIAL & MANUFACTURING PROCESS
Composed of paint-grade, finger-jointed poplar or equal.  If you desire
another wood species, please inform us, and it would be our pleasure to
accomodate.  Each column is made to your exact specifications in order
to produce magnificent exterior wood columns as well as architectural
interior wood columns for your residential project or commercial construction.
Our Rope Twist Wood Columns are perfect for both interior projects and
exterior projects, as they demonstrate an exclusive style that instantly becomes
your project's focal point.


COLUMN SHAFT

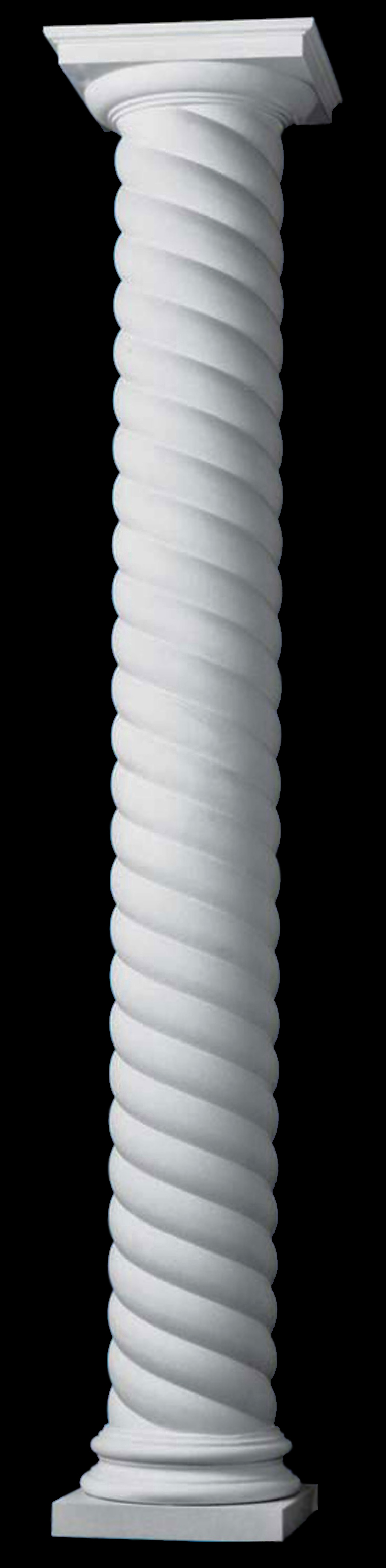

Rope Twist, Non-Tapered column shaft.  The Rope Twist Non-Tapered
wood column shaft may be custom fabricated in your choice of wood
species.  The maximum diameter is 24" & the maximum height is 12'.  We
use Western Red Cedar, Clear Heart Redwood, pine, poplar, mahogany,
teak or any other wood species desired.  Wood materials are available in
both solid board and finger-joint form.  We recommend using either
finger-joint redwood or cedar for interior columns that will be stained or
left natural with a clear protective finish to display the grain of the wood.


CAPITAL & BASE MOLDING
CAPITAL:  Design 190 is characterized by a Roman Doric capital, made
of paint-grade, load-bearing polyester resin.  Wood capitals are available
for all sizes at an upcharge.  We are able to replicate for historic restoration
if you have as much as a quarter of the existing capital including corner and
any side design.  Please contact a Chadsworth Sales Consultant for additional
capital materials and information.
BASE MOLDING:  Design 190 includes
an Ionic (Attic) base.  Base materials made of lightweight polyurethane.
Additional base materials offered for an upcharge.  PLINTH:  We offer a
variety of Plinth materials, specific to your column sizes and interior or
exterior applications.



LOWER/BOTTOM DIAMETER:  Custom

UPPER/TOP DIAMETER:  Custom

OVERALL HEIGHT:  Custom

STAVE THICKNESS:  1-9/16"

INTERIOR ROUND CLEARANCE:  Dependent on size of column

INTERIOR SQUARE CLEARANCE: Dependent on size of column

ACCEPTABLE TOLERANCE: 1/8"

SHAFT WEIGHT:  Dependent on size of column
LOAD-BEARING CAPACITY:   Dependent on size of column




PLAN SHAPE A PLAN SHAPE B PLAN SHAPE C PLAN SHAPE D PLAN SHAPE K PLAN SHAPE L PLAN SHAPE S
Full Round 3/4 Corner Round
2/3 Chord Round
Half Round 3/4 Chord Round Slide-On Round Split For Reassembly




Architectural Specifications (Coming Soon)

Load-Bearing Capacities (Coming Soon)

Load-Bearing Applications

Interior Clearances (Coming Soon)

CAD (.dwg) Drawings (Coming Soon)

PDF Drawings (Coming Soon)

Installation Instructions

Joining Split Columns

Finishing & Painting Instructions




FLEXIBILITY:
• Able to be split & tabbed for reassembly
• Client determines exact overall height
• Shaft will have proper 1/3, 2/3 taper (entasis).
• Other wood species available upon request
(may result in higher cost).
• Assortment of capitals, bases & plinths available


S
HIPPING:
• Boxing, collaring, and crating available
• Review SHIPPING INSTRUCTIONS


RESTOCKING:
• None.  All Authentic Replication columns are
made to order, and therefore cannot be returned.



 WARRANTY:

Click to review the full warranty


PHOTO GALLERY:
•      www.columnsphoto.com

ADDITIONAL DESIGNS:

• For additional column designs, please
   visit our Columns Design Page
